MAX208EEAG+

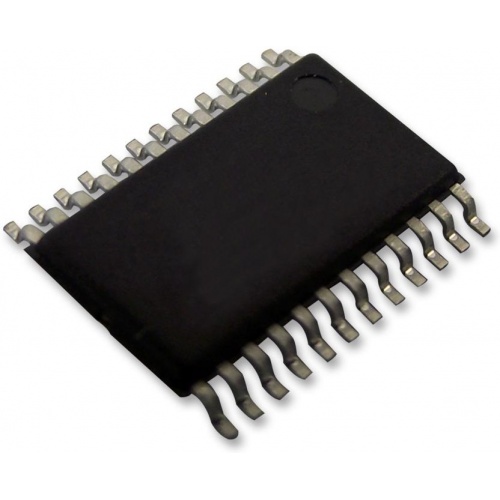

The MAX208EEAG+ is a ±15KV ESD protected, +5V RS232 transceiver in 24 pin SSOP package. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM (Human Body Model) protection and integrated charge pump circuitry for single 5V supply operation. This transceiver meets all EIA/TIA232E and CCITT V.28 specifications at data rate up to 120Kbps when loaded. This device is typically used in battery powered equipment.

• Four drivers and four receivers
• Supply voltage range from 4.5V to 5.5V
• Operating temperature range from -40°C to 85°C
• Supply current is 11mA
• Four 0.1µF external capacitors
• Saves board space
• Saves power for reduced power requirement
