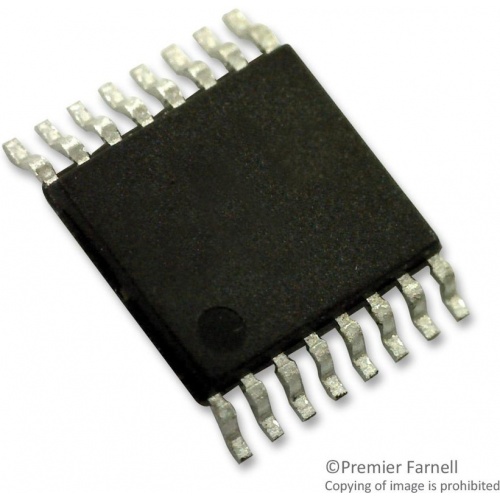

ADN4667ARUZ

The ADN4667ARUZ is a quad CMOS low voltage differential signalling (LVDS) Line Driver offering data rates of over 400Mbps (200MHz) and ultralow power consumption. It features a flow-through pin-out for easy PCB layout and separation of input and output signals. The device accepts low voltage TTL/CMOS logic signals and converts it to a differential current output of typically ±3.1mA for driving a transmission medium such as a twisted pair cable. The transmitted signal develops a differential voltage of typically ±310mV across a termination resistor at the receiving end. This is converted back to a TTL/CMOS logic level by an LVDS receiver. The ADN4667 also offers active high and active low enable/disable inputs (EN and EN). These inputs control all four drivers and turn off the current outputs in the disabled state to reduce the quiescent power consumption to typically 10mW.

• Flow-through pin-out simplifies PCB layout
• 300ps Typical differential skew
• 400ps Maximum differential skew
• 1.7ns Maximum propagation delay
• Low power dissipation
• Interoperable with existing 5V LVDS receivers
• High impedance on LVDS outputs on power-down
