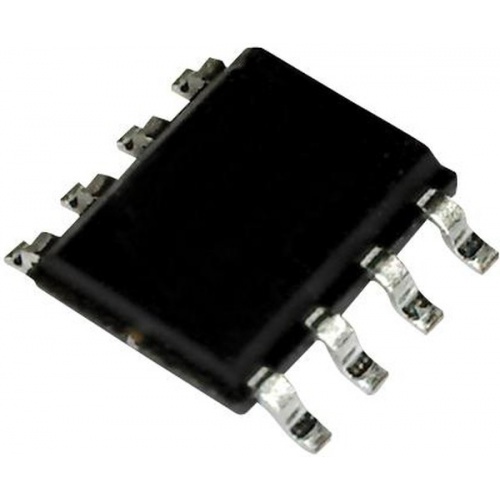

TMP36GSZ

The TMP36 series low voltage Centigrade Temperature Sensor. They provide a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The device does not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over -40 to +125°C temperature range. The low output impedance of the device and its linear output and precise calibration simplify interfacing to temperature control circuitry and ADCs. All three devices are intended for single-supply operation from 2.7 to 5.5V maximum. The supply current runs well below 50 µA, providing very low self-heating-less than 0.1°C in still air. In addition, a shutdown function is provided to cut the supply current to less than 0.5µA.

• Provides a 750mV output at 25°C
• Reads temperatures from -40 to 125°C
• Calibrated directly in °C
• 10 mV/°C scale factor
• ±0.5°C linearity (typical)
• Stable with large capacitive loads
• Less than 50µA Quiescent current
• 0.5µA maximum Shutdown current
• Low self-heating
