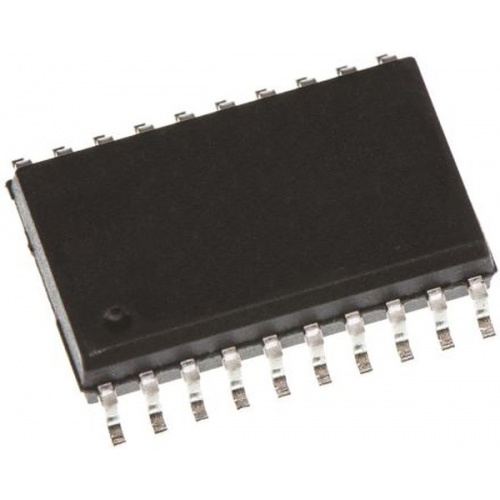

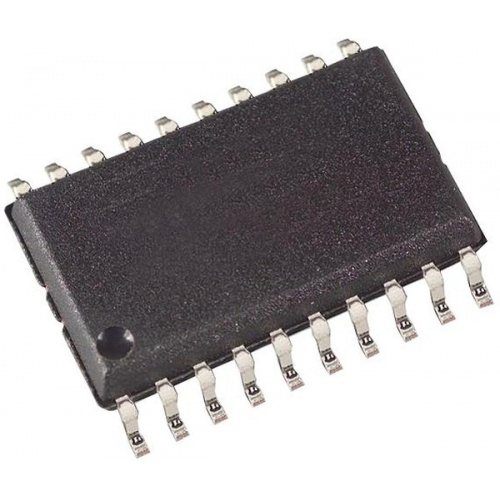

SN74HC373DW

The SN74HC373DW is an octal transparent D Latch with 3-state outputs. It is designed specifically for driving highly capacitive or relatively low-impedance loads. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers and working registers. While the LE input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the levels that were set up at the D inputs. An OE input places the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pull-up components. OE does not affect the internal operations of the latches. Old data can be retained or new data can be entered while the outputs are off.

• High-current 3-state true outputs can drive up to 15 LSTTL loads
• Full parallel access for loading
• Eight high-current latches
• 80µA Maximum low power consumption
• Typical tpd = 13ns
• ±6mA Output drive at 5V
• 1µA Maximum low input current
• Green product and no Sb/Br
