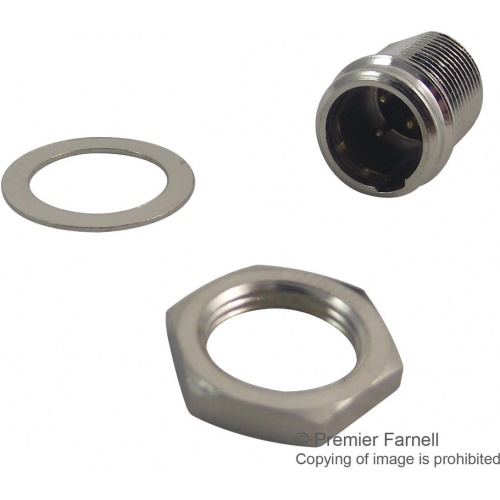

RT3MP

The RT3MP is a 3-pole Male TINY XLR Chassis Connector with nickel housing and gold-plated brass contacts. It has PA insert and nickel-plated zinc die-cast shell. This XLR connector is watertight chassis connector even in unmated condition, shielded system provides high noise immunity and EMI protection.

• Front and rear mountable design
• <10mR Contact resistance
• >1GR Isolation resistance
• <5A Current rating per contact
• Solderability complies with IEC 68-2-20 standard
• -30 to 85°C Operating temperature range
