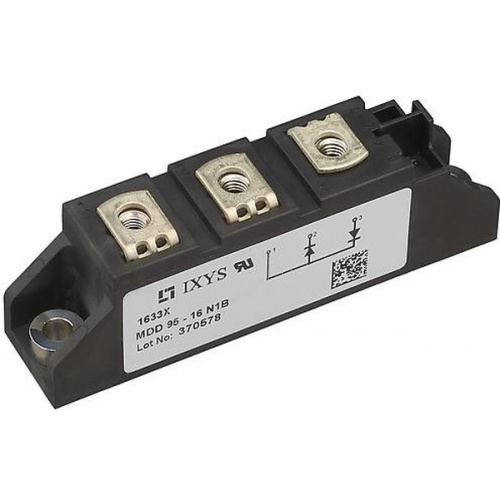

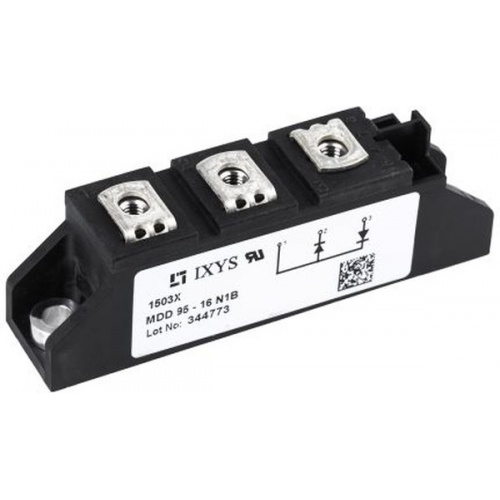

MDD95-16N1B

The MDD95-16N1B is a Standard Rectifier Module features planar passivated chips, very low forward voltage drop, improved temperature and power cycling. This rectifier module is suitable for single- and three-phase bridge configurations.

• Very low leakage current
• 0.75V Threshold voltage
• 1.95mR Slope resistance
• 481W at 25°C Total power dissipation
• 116pF at 400V/1MHz Junction capacitance
