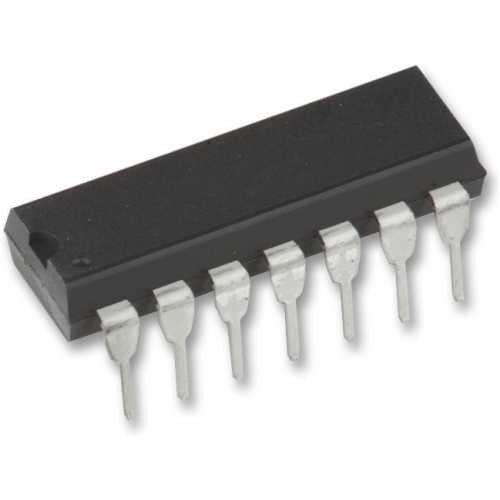

MCP4231-103E/P

The MCP4231-103E/P is a 7/8-bit single/dual SPI Digital Potentiometer with volatile memory. The MCP41/423X device is volatile, 7-bit (129 wiper steps) digital potentiometer with an SPI compatible interface. The MCP41/42XX family is available with end-to-end resistor values of 5KR, 10KR, 50kR and 100KR. These devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count. This family of devices support 7-bit and 8-bit resistor networks and potentiometer and rheostat pinouts.

• 7-bit: 128 resistors with taps to VSS and VDD
• SPI compatible interface
• Automatic recall of potentiometer wiper settings
• 5, 10, 50 and 100kR Resistance values
• Low Tempco
• 100R Typical low wiper resistance
• Low-power operation - 1µA maximum static current
