MAX7480ESA+
Цена 670.00 руб.
Описание MAX7480ESA+
The MAX7480ESA+ is a low-pass Butterworth Switched-capacitor Filter for ADC anti-aliasing and post-DAC filtering. The...The MAX7480ESA+ is a low-pass Butterworth Switched-capacitor Filter for ADC anti-aliasing and post-DAC filtering. The 8th-order switched-capacitor filter (SCF) operates from a single +5V supply. The device draws only 2.9mA of supply current and allows corner frequencies from 1Hz to 2kHz, making it ideal for low-power post-DAC filtering and anti-aliasing applications. The MAX7480 features a shutdown mode, which reduces the supply current to 0.2µA. The MAX7480 Butterworth filter provides a maximally flat passband response. The fixed response simplifies the design task to selecting a clock frequency.
• Low noise and distortion (-73dB THD + noise)
• Clock-tunable corner frequency
• 100: 1 Clock-to-corner ratio
• Low power
• ±5mV Low output offset
Тип | фильтр баттервортанч коммутируемый конденсатор |
---|---|
Количество каналов | 1 |
Частота отсечки | 2 кГц |
Напряжение питания | 4.5…5.5В |

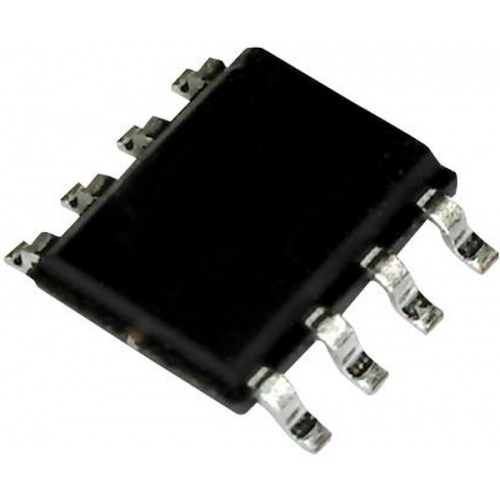

Корпус | soic-8(0.154 inch) |
Вес | 0.15г |
В разработке.
Характеристики, параметры
