LM4871M/NOPB

Цена 60.00 - 220.01 руб.

Описание LM4871M/NOPB

The LM4871M/NOPB is a mono bridged Audio Power Amplifier, capable of delivering 3W of continuous average power into a...

The LM4871M/NOPB is a mono bridged Audio Power Amplifier, capable of delivering 3W of continuous average power into a 3R load with less than 10% THD when powered by a 5V power supply. To conserve power in portable applications, the LM4871's micropower shutdown mode (IQ = 0.6µA, typical) is activated when VDD is applied to the SHUTDOWN pin. Boomer audio power amplifier is designed specifically to provide high power, high fidelity audio output. They require few external components and operate on low supply voltages from 2.0V to 5.5V. Since the LM4871 does not require output coupling capacitors, bootstrap capacitors or snubber networks, it is ideally suited for low-power portable systems that require minimum volume and weight.

• No output coupling capacitors, bootstrap capacitors or snubber circuits required
• Unity gain stable
• External gain configuration capability
• Pin compatible with LM4861
• Thermal shutdown protection, unity-gain stability and external gain set
• Green product and no Sb/Br

Количество каналов 1
Выходная мощность канала 3Вт
Вид напряжения питания однополярное
Напряжение питания 2…5.5В
Сопротивление нагрузки 3Ом
Напряжение на нагрузке

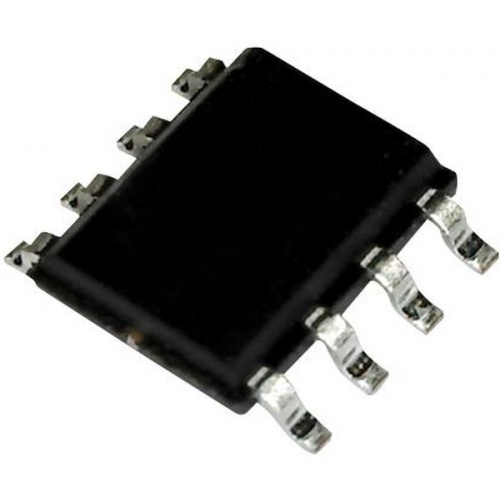

Тип корпуса so8
Вес 0.15г

В разработке.

Характеристики, параметры

Скачать файл

  • Наименование Отгрузка, дней Наличие, шт. Цена, руб Нужное к-во, шт.

    LM4871M|NOPB

    7-10 55 220.01

    LM4871M|NOPB

    3-7 389 60.00
