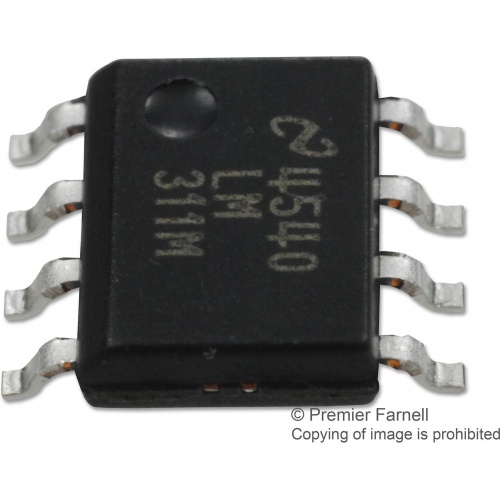

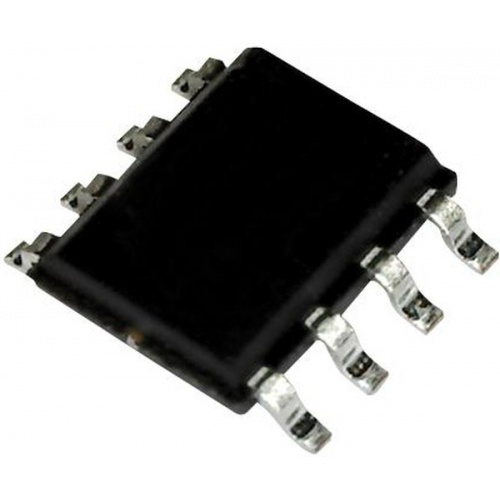

LM311MX/NOPB

The LM311MX/NOPB is a Voltage Comparator has input currents nearly a thousand times lower than devices like the LM106 or LM710. It is also designed to operate over a wider range of supply voltages from standard ±15V op amp supplies down to the single 5V supply used for IC logic. Their output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, it can drive lamps or relays, switching voltages up to 50V at currents as high as 50mA. The LM311-N can be isolated from system ground and the output can drive loads referred to ground, the positive supply or the negative supply. Offset balancing and strobe capability are provided and outputs can be wire OR'ed.

• 150nA Input current
• 20nA Offset current
• ±30V Differential input voltage
• 135mW at ±15V Power consumption
• 260°C Lead temperature (soldering, 10 seconds)
