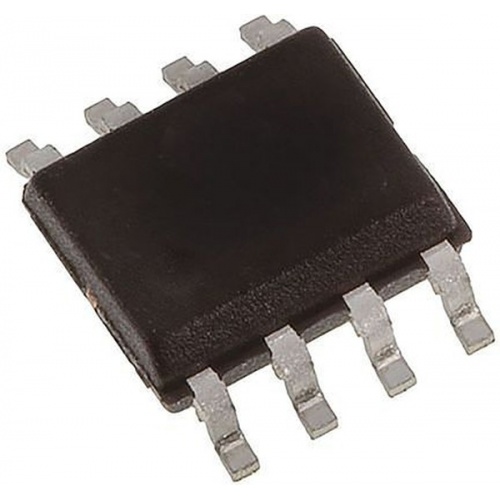

LM2903DT

Цена 4.55 - 10 990.20 руб.

Описание LM2903DT

The LM2903DT is a low-power dual Voltage Comparator designed specifically to operate from a single supply over a wide...

The LM2903DT is a low-power dual Voltage Comparator designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. In addition, the device has unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage.

• Very low supply current (0.4mA) - independent of supply voltage
• Input common-mode voltage range includes negative rail
• 250mV Low output saturation voltage
• Differential input voltage range equal to the power supply voltage
• TTL, DTL, ECL, MOS, CMOS compatible outputs

Количество каналов	2
Напряжение питания	±18В
Время задержки	300нс
Ток потребления	2мА
Температурный диапазон	-40…125С

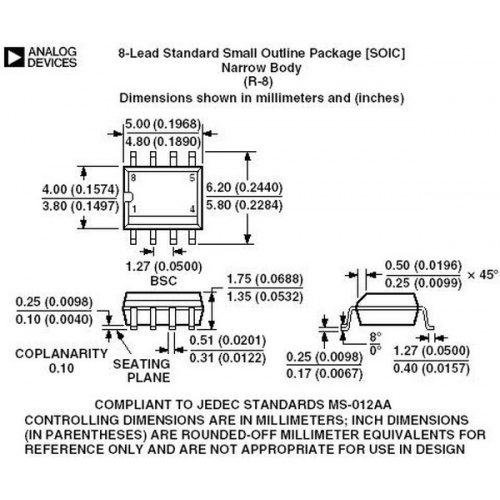

Тип корпуса	so8
Напряжение компенсации	7мВ
Вес	0.15г

В разработке.

Характеристики, параметры

Скачать файл

Наименование	Отгрузка, дней	Наличие, шт.	Цена, руб
LM2903DT	4-6	29161	1000 8.84
LM2903DT	5-8	95	1000 10.40
LM2903DT	5-12	30	1000 6.44
LM2903DT	1-2	190	3000 6.96
LM2903DT	5-7	398	3000 6.71
LM2903DT	4-7	1200	3000 19.89
LM2903DT	4-7	2200	3000 11.26
LM2903DT	4-7	2400	3000 33.15
LM2903DT	2-5	257	3000 8.90
LM2903DT	7-10	68	3000 42.90
