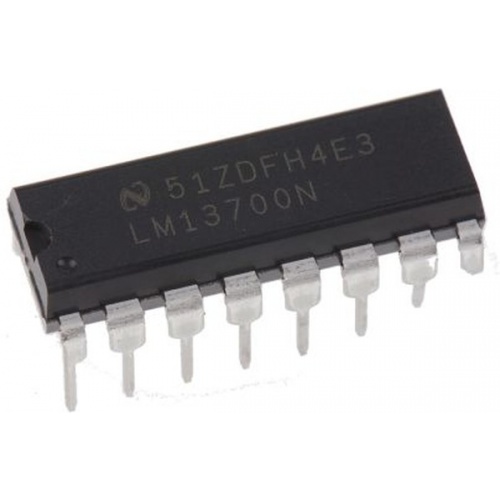

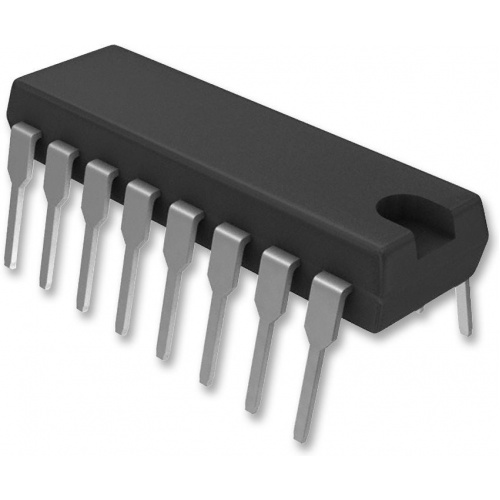

LM13700N/NOPB

The LM13700N/NOPB is a dual Operational Transconductance Amplifier, each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10dB signal-to-noise improvement referenced to 0.5% THD. High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers. The output buffers of the LM13700 differ from those of the LM13600 in that their input bias currents (and hence their output DC levels) are independent of IABC. This may result in performance superior to that of the LM13600 in audio applications.

• gm Adjustable Over 6 Decades
• Excellent gm Linearity
• Excellent Matching Between Amplifiers
• Linearizing Diodes
• High Impedance Buffers
• High Output Signal-to-noise Ratio
