117804

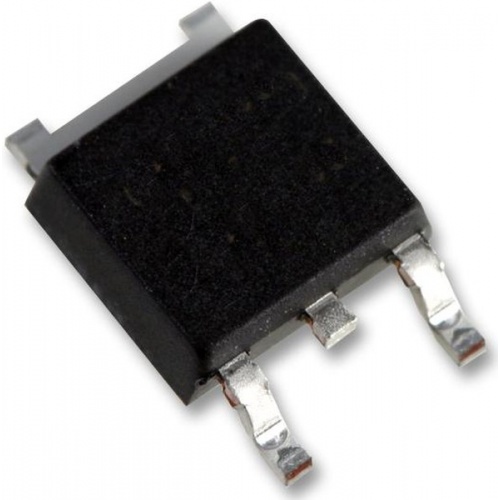

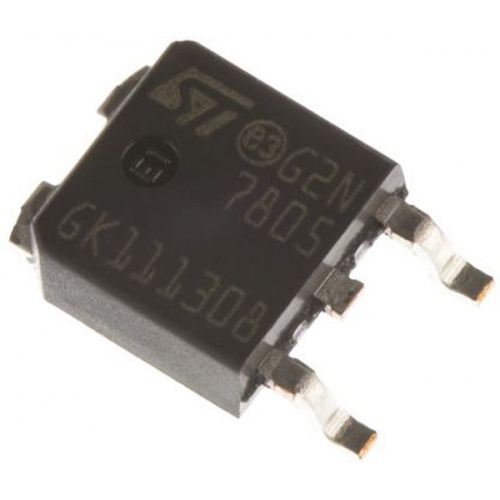

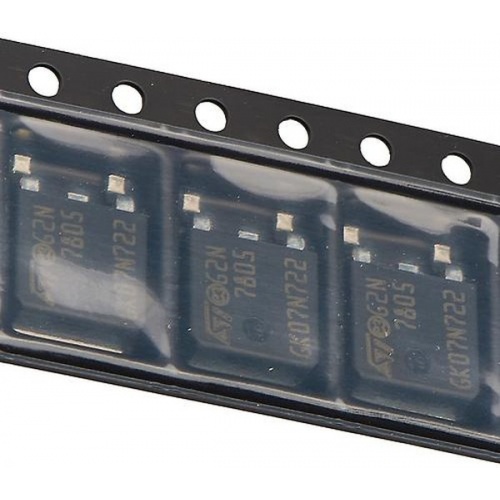

L7805CDT-TR
Цена 17.15 - 156.00 руб.
Описание L7805CDT-TR
L78 Series Linear Voltage Regulator, STMicroelectronics STMicroelectronics L78 Series of fixed output voltage regulat...
L78 Series Linear Voltage Regulator, STMicroelectronics
STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.<BR/>
STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.<BR/>
| Полярность | положительная |
|---|---|
| Тип выхода | фиксированный |
| Количество выходов | 1 |
| Выходное напряжение | 5В |
| Максимальный ток нагрузки | 1.5А |
| Падение напряжения при Iвых | 2(1)В (А) |
| Максимальное входное напряжение | 35В |
| Рабочая температура | 0…+125°C |
| Корпус | dpak(to-252) |
| Вес | 0.4г |
В разработке.
Характеристики, параметры
Скачать файл-
Наименование Отгрузка, дней Наличие, шт. Цена, руб Нужное к-во, шт. L7805CDT-TR
5-8 82 156.00 L7805CDT-TR
4-6 2369 38.84 L7805CDT-TR
5-12 30 32.20 L7805CDT-TR
4-5 1200 17.15 L7805CDT-TR
1-2 90 38.34 L7805CDT-TR
2-5 2 33.78 L7805CDT-TR
4-7 880 25.66 L7805CDT-TR
3-7 2 30.75
