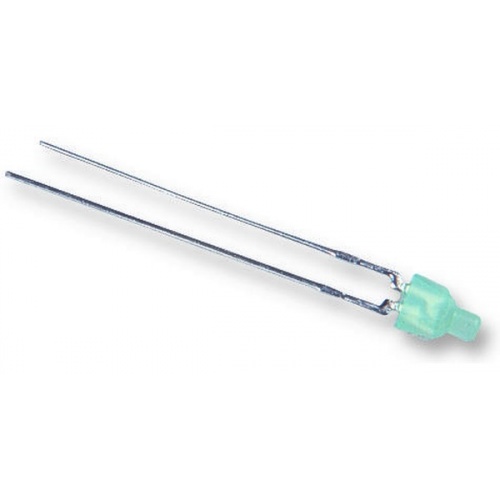

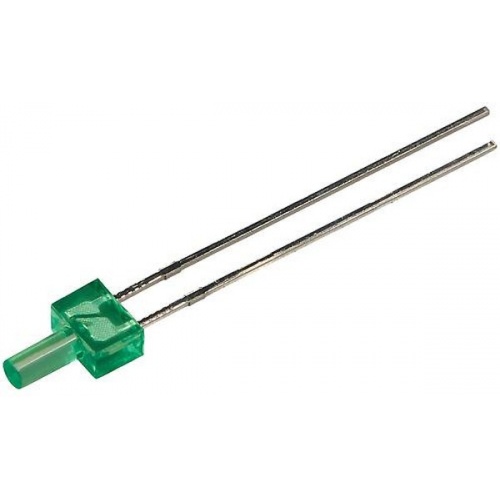

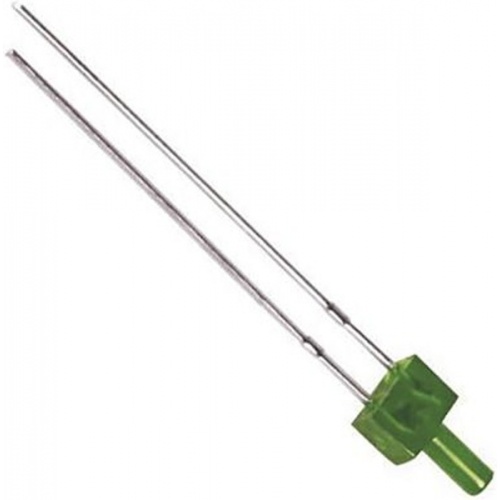

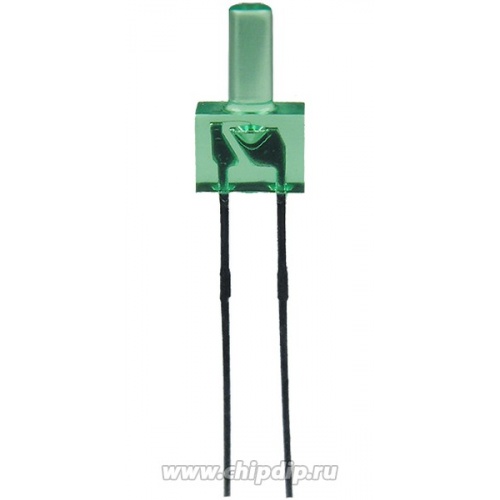

L-13GD

LED, FLAT TOP, 2MM, GREEN; LED / Lamp Size: 2mm Flat Top; Colour, LED: Green; Luminous Intensity, Typ: 12.5mcd; Angle, Viewing: 140°; Current, Forward If: 25mA; Voltage, Vf Max: 2.2V; Temperature, Operating Range: -40°C to +85°C; Case Style: Radial; Current, If Luminous Intensity: 10mA; Current, If Max: 25mA; Depth, External: 2.5mm; Depth, Lead Cross-section: 0.5mm; Diameter, Head: 2mm; LED Colour Presentation: ; Length / Height, External: 8mm; Length, Head: 4.5mm; Length, Lead: 27mm; Lens Type: Tinted Diffused; Pitch, Lead: 2.54mm; Voltage, PIV Max: 5V; Voltage, Vf Typ: 2.2V; Wavelength, Peak: 565nm; Wavelength, Typ: 565nm; Width, External: 4.8mm; Width, Lead Cross-section: 0.5mm
Цвета свечения зелёный, Длина волны 1 цвета 568 нм, Сила света 1 кристалла 10 мкд, Угол по горизонтали 70 °, Тип линзы цветная, матовая
