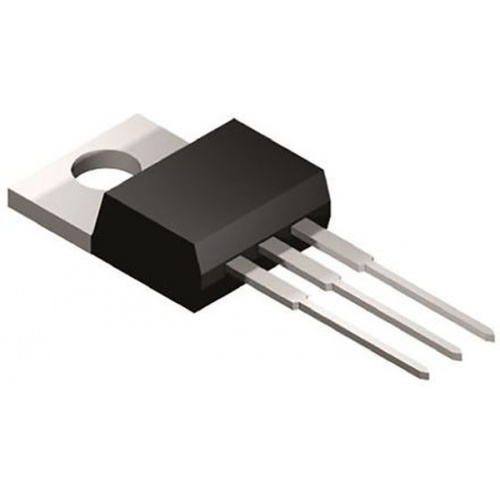

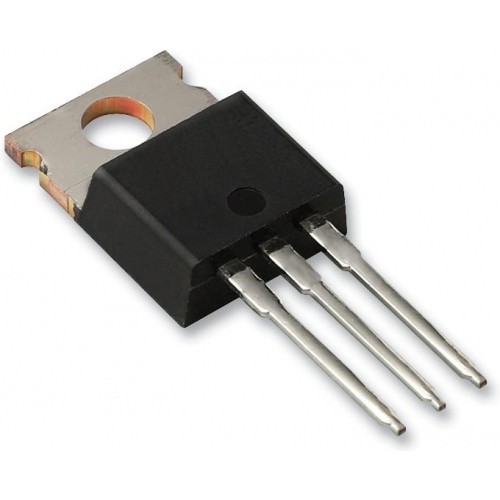

IRFB4610PBF

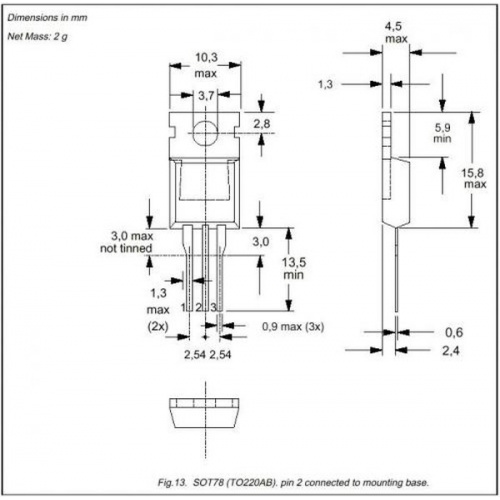

MOSFET, N, 100V, TO-220 Transistor Type MOSFET Transistor Polarity N Voltage, Vds Typ 100V Current, Id Cont 73A Resistance, Rds On 11mohm Voltage, Vgs Rds on Measurement 10V Voltage, Vgs th Typ 4V Case Style TO-220 (SOT-78B) Termination Type Through Hole Alternate Case Style SOT-78B Avalanche Single Pulse Energy Eas 370mJ Current, Idm Pulse 290A Lead Spacing 2.54mm No. of Pins 3 Pin Configuration a Pin Format 1G, (2+Tab)D, 3S Power Dissipation 190W Power, Pd 190W Power, Ptot 190W Resistance, Rds on @ Vgs = 10V 0.014ohm Temperature, Current 25°C Temperature, Full Power Rating 25°C Time, trr Typ 35ns Transistors, No. of 1 Typ Capacitance Ciss 3550pF Voltage, Vds Max 100V Voltage, Vgs th Max 4V Voltage, Vgs th Min 2V
Корпус SOT78, Конфигурация и полярность N, Максимальное напряжение сток-исток 100 В, Ток стока номинальный при 25°C, без учета ограничений корпуса 73 А, Сопротивление открытого канала (мин) 14 мОм
