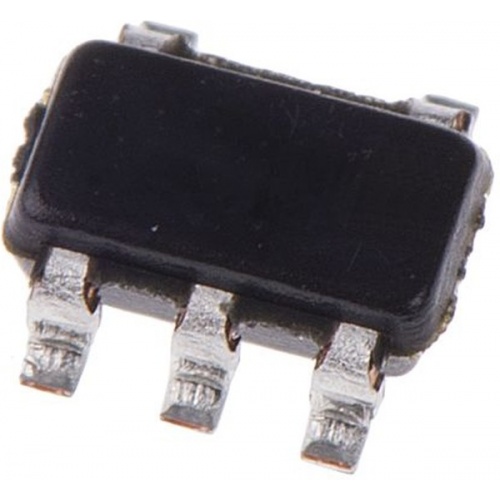

INA194AIDBVT

The INA194AIDBVT is a low/high-side high-speed voltage output Current Shunt Monitor with voltage output can sense drops across shunts at common-mode voltages from -16 to +80V, independent of the INA19x supply voltage. This monitor is available with 50V/V output voltage scale. The 500kHz bandwidth simplifies use in current control loops.

• 3% Maximum over-temperature low error
• Complete current-sense solution
• 900µA Maximum quiescent current
• Green product and no Sb/Br
