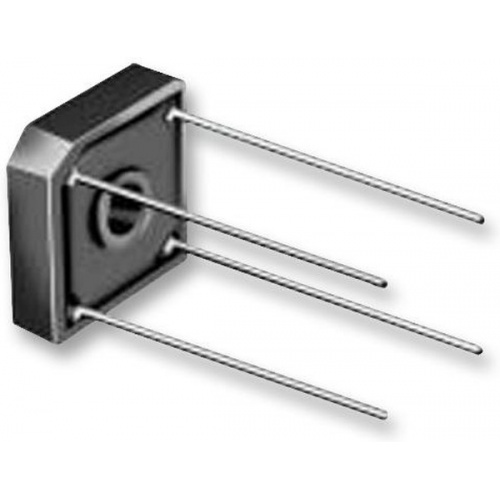

GBPC3510W-E4/51

The GBPC3510W-E4/51 is a 4-pin single-phase glass passivated Bridge Rectifier Diode with high surge current capability. It is general purpose use in AC/DC bridge full wave rectification for home appliances, office equipment and telecommunication applications.

• UL94V-0 Flammability rating
• <0.3µA Typical IR
• Silver plated on wire leads solderable per J-STD-002 and JESD22-B102 terminals
• Low thermal resistance
• Solder dip 275°C maximum 10s, per JESD 22-B106
• UL recognition file number E54214
• 700V Maximum RMS voltage
• -55 to 150°C Operating junction temperature range
