FT232RL-REEL

FT232R - USB to Serial UART with Clock Generator, FTDI Chip

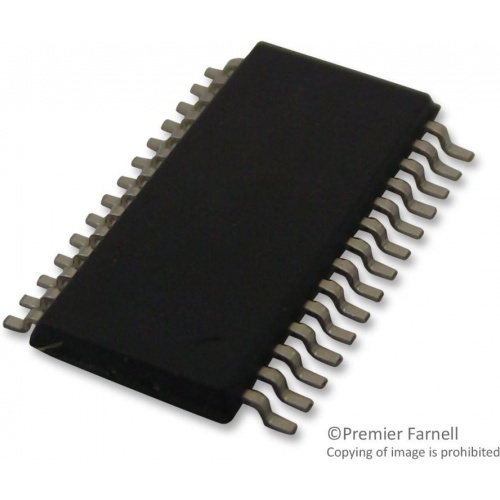

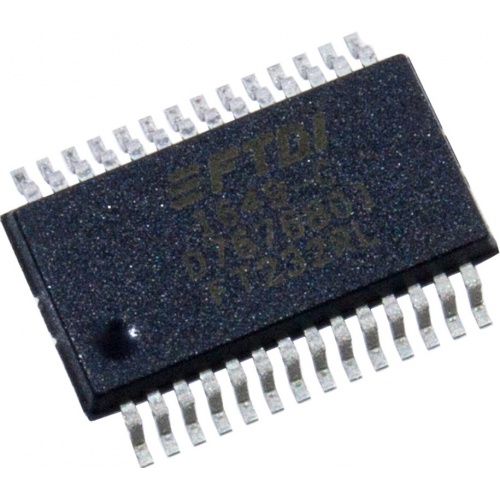

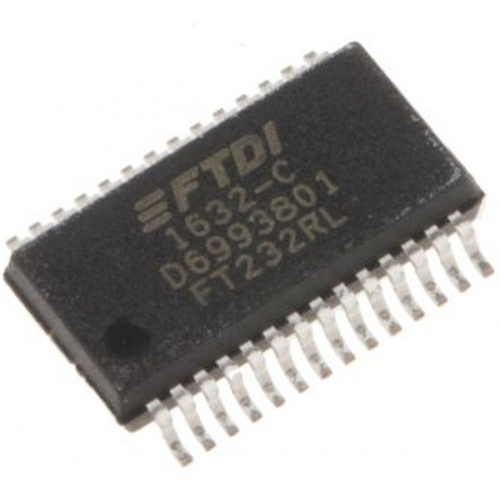

The FTDI Chip FT232R is a USB to serial UART interface with optional clock generator output. Asynchronous and synchronous bit bang interface modes are also available. Together with EEPROM, clock circuit and USB resistors effectively makes it a "3 in 1" chip for some applications. The internally generated clock (6 MHz, 12 MHz, 24 MHz, and 48 MHz) can be used to drive a microcontroller or external logic.<BR/><BR/>A unique number, the FTDIChip-ID, is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle. It can then be used to protect customer application software from being copied. Royalty-free drivers for the most common operating systems are available from FTDI website. http: //www.ftdichip.com<BR/><BR/>The FT232R is available in compact 28-pin SSOP (RS <a href="/productpage/productpage?stockcode=406-580"><span class="inlineLink">406-580</span></a>) and 32-pin QFN (RS <a href="/productpage/productpage?stockcode=730-0168"><span class="inlineLink">730-0168</span></a>) packages.
