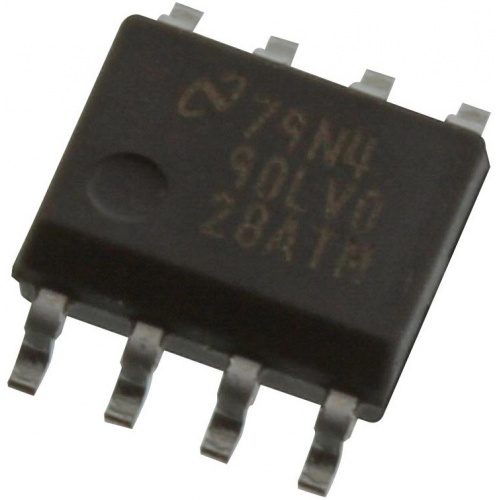

DS90LV028ATM/NOPB

The DS90LV028ATM/NOPB is a dual CMOS differential Line Receiver designed for applications requiring ultra-low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400Mbps (200MHz) utilizing low voltage differential signaling (LVDS) technology. It accepts low voltage (350mV typical) differential input signals and translates them to 3V CMOS output levels. The receiver also supports open, shorted and terminated (100R) input fail-safe. The receiver output will be high for all fail-safe conditions. It has a flow-through design for easy PCB layout. The DS90LV028A and companion LVDS line driver provide a new alternative to high power PECL/ECL devices for high speed point-to-point interface applications.

• Flow-through pin-out
• Power down high impedance on LVDS inputs
• Low power design (18mW at 3.3V static)
• Interoperable with existing 5V LVDS networks
• Accepts small swing (350mV) differential signal levels
• Supports open, short and terminated input failsafe
• 50ps Differential skew (typical)
• 0.1ns Channel-to-channel skew (typical)
• 2.5ns Maximum propagation delay
• Green product and no Sb/Br
