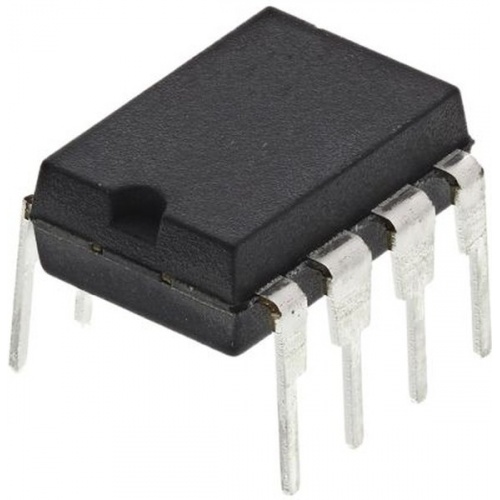

DS1232LP+

CMOS MICRO-MONITOR, 1232, DIP8 Voltage, Turn On Threshold 4.37V Current, Supply 200µA Reset Type Active-High / Active-Low Output Current Max 10mA Output Type Push-Pull, Open-Drain Voltage, Supply Min 4.5V Voltage, Supply Max 5.5V Termination Type Through Hole Case Style DIP No. of Pins 8 Operating Temperature Range 0°C to +70°C Temp, Op. Max 70°C Temp, Op. Min 0°C Base Number 1232 IC Generic Number 1232 Logic Function Number 1232 Microprocessor Support IC Type Supervisory Circuit Temperature Range, IC Commercial
Корпус DIP-8, Кол-во супервизоров 1, Пороговое напряжение 5 В
