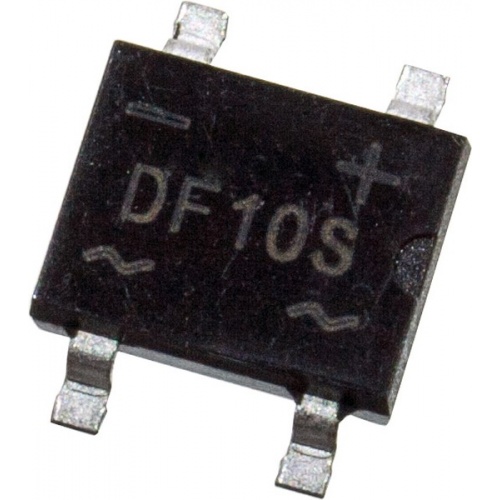

DF10S

Цена 3.30 - 13.22 руб.

Описание DF10S

The DF10S is a glass passivated Bridge Rectifier with the ever-pressing need to improve power supply efficiency, impr...

The DF10S is a glass passivated Bridge Rectifier with the ever-pressing need to improve power supply efficiency, improve surge rating, improve reliability and reduce size, the DFxS family sets a standard in performance. The design offers an surge rating of 50A. This is important when improving reliability and increasing efficiency. High efficiency designs strive to reduce circuit resistance, which, unfortunately can result in increased inrush surge. As such high surge current ratings can be required to maintain or improve reliability. The design also offers better efficiency by achieving a 1.5A VF of 1.1V maximum at 25°C. This lower VF also supports cooler and more efficient operation.

• 700V Maximum RMS bridge input voltage
• 3.1W Power dissipation
• 25pF at 4V/1MHz Total capacitance per leg
• UL Certified

Максимальное постоянное обратное напряжение	1000В
Максимальное импульсное обратное напряжение	1000В
Максимальный прямой(выпрямленный за полупериод) ток	1А
Максимальный допустимый прямой импульсный ток	50А
Максимальный обратный ток	5мкА
Максимальное прямое напряжение	1.1В
при Iпр.	1А
Общая емкость Сд	25пФ
Рабочая температура	-55…+150С
Способ монтажа	smd
Корпус	dfs
Количество фаз	1
Вес	0.7г

В разработке.

Характеристики, параметры

Скачать файл

Наименование	Отгрузка, дней	Наличие, шт.	Цена, руб
DF10S	6-7	1496	1000 9.26
DF10S	2-5	929	1000 5.22
DF10S	2-5	5700	1000 4.85
DF10S	2-5	3084	1000 5.38
DF10S	2-5	5345	1000 13.22
DF10S	4-5	100644	1000 3.30
DF10S	2-5	13802	1000 4.10
DF10S	2-5	10756	1000 4.72
DF10S	4-7	90	1000 6.63
DF10S	4-7	39	1000 5.53
DF10S	4-7	980	1000 6.63
DF10S	4-7	4400	1000 6.63
DF10S	4-6	1	2000 11.66
