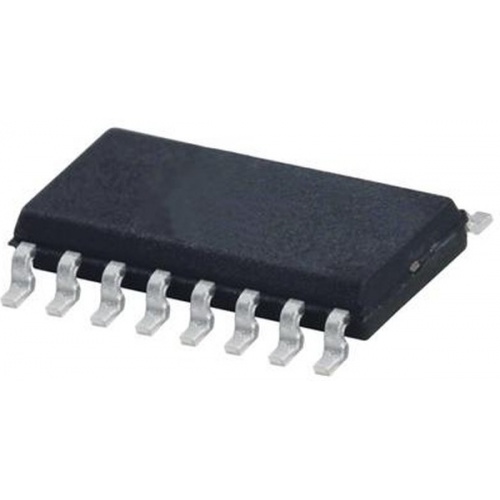

CD74HC4046AM
Цена 36.89р.
Описание CD74HC4046AM
The CD74HC4046AM is a CMOS logic high-speed Phase-locked-loop with VCO. This device contains three different phase co...The CD74HC4046AM is a CMOS logic high-speed Phase-locked-loop with VCO. This device contains three different phase comparators (PC1, PC2 and PC3). A signal input and a comparator input are common to each comparator. The signal input can be directly coupled to large voltage signals or indirectly coupled (with a series capacitor) to small voltage signals. A self-bias input circuit keeps small voltage signals within the linear region of the input amplifiers. With a passive low-pass filter, the 4046A forms a second-order loop PLL. The excellent VCO linearity is achieved by the use of linear op-amp techniques.
• Choice of 3-phase comparators
• Excellent VCO frequency linearity
• VCO inhibit control for ON/OFF keying and for low standby power consumption
• Minimal frequency drift
• Balanced propagation delay and transition times
• Significant power reduction compared to LSTTL logic ICs
• Green product and no Sb/Br
Вес | 0.3г |
---|
В разработке.
Характеристики, параметры
Скачать файлРезультаты поиска по позиции
-
Наименование Отгрузка, дней Наличие, шт. Цена, руб Нужное к-во, шт. CD74HC4046AM
12-45 по запросу 1000 36.89
