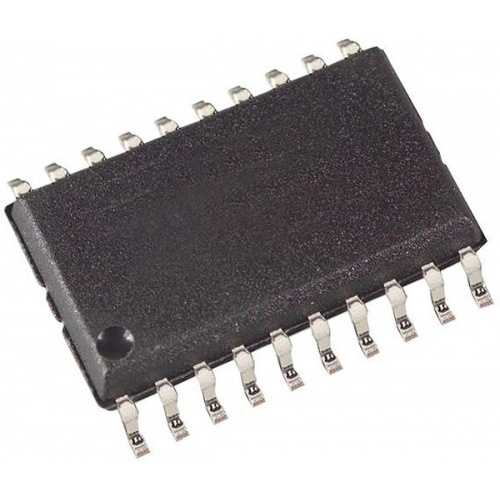

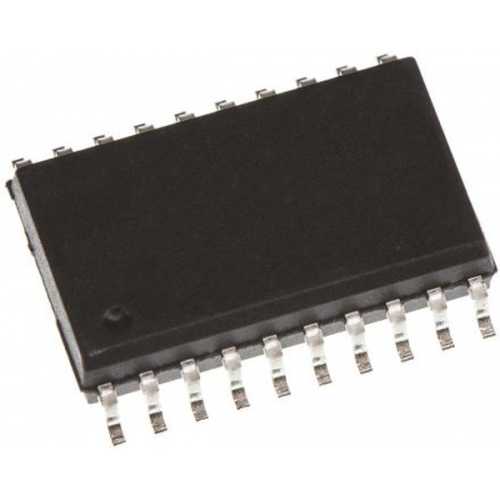

CD74AC573M

The CD74AC573M is an octal transparent Non-inverting Latch with 3-state outputs. It uses the RCA ADVANCED CMOS technology. The outputs are transparent to the inputs when the LE is high. When the LE goes low, the data is latched. The OE controls the 3-state outputs. When the OE is high, the outputs are in the high-impendence state. The latch operation is independent of the state of the output enable.

• Buffered inputs
• Balanced propagation delays
• Exceeds 2kV ESD protection - MIL-STD-883, method 3015
• SCR Latch-up resistant CMOS process and circuit design
• Speed of bipolar FAST/AS/D with significantly reduced power consumption
• balanced noise immunity at 30% of the supply
• ±24mA output drive current
• Drives 50R transmission lines
• Green product and no Sb/Br
