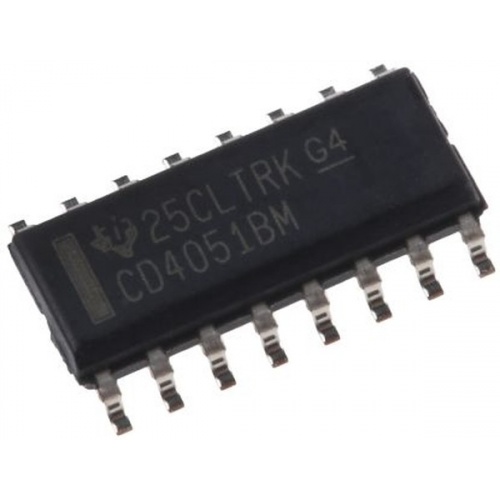

CD4051BM96

The CD4051BM96 is a CMOS single 8-channel Analogue Multiplexer/Demultiplexer with logic-level conversion, digitally-controlled analogue switches having low ON impedance and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD - VSS and VDD - VEE supply-voltage ranges, independent of the logic state of the control signals.

• 3 to 20V Digital, <=20VP-P analogue, wide range of digital and analogue signal levels
• Low ON resistance, 125R (typical) over 15 VP-P signal input range for VDD - VEE = 18V
• High OFF resistance, channel leakage of ±100pA (typical) at VDD - VEE = 18V
• Logic-level conversion for digital addressing signals of 3 to 20V (VDD - VSS = 3 to 20V)
• Binary address decoding on chip
• 5, 10 and 15V Parametric ratings
• 100% Tested for quiescent current at 20V
• Maximum input current of 1µA at 18V over full package-temperature range, 100nA at 18V and 25°C
• Break-before-make switching eliminates channel overlap
• Green product and no Sb/Br
