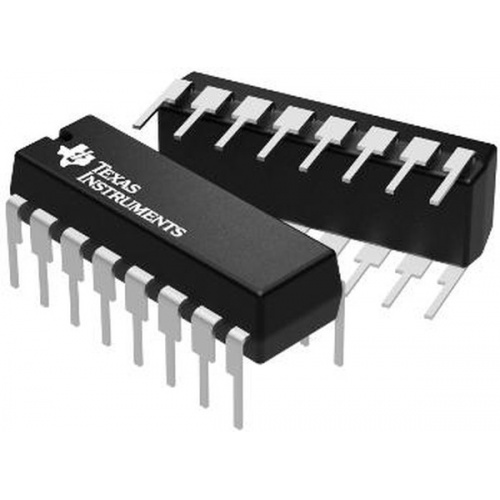

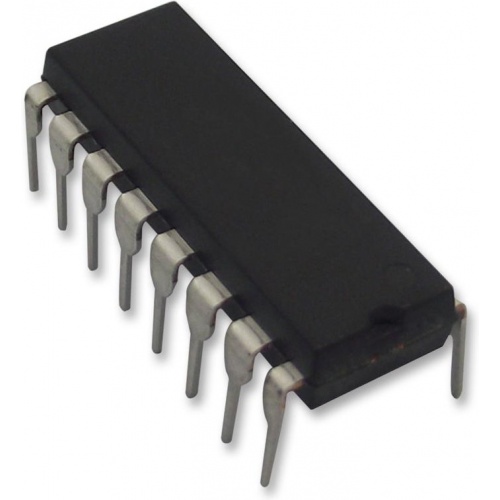

CD4028BE
Цена 32.37 - 10 472.80 руб.
Описание CD4028BE
The CD4028BE is a MOS BCD-to-Decimal or Binary-to-Octal Decoder/Driver consisting of buffering on all 4 inputs, decod...The CD4028BE is a MOS BCD-to-Decimal or Binary-to-Octal Decoder/Driver consisting of buffering on all 4 inputs, decoding-logic gates and 10 output buffers. A BCD code applied to the four input, A to D, results in a high level at the selected one of 10 decimal decoded outputs. Similarly, a 3-bit binary code applied to inputs A through C is decoded in octal code at output 0 to 7 if D=0. High drive capability is provided at all outputs to enhance DC and dynamic performance in high fan-out applications. It is suitable for code conversion, indicator-tube decoder and address decoding-memory selection control.
• BCD-to-decimal decoding or binary-to-octal decoding
• High decoded output drive capability
• Medium-speed operation
• Standardized, symmetrical output characteristics
• 100% Tested for quiescent current at 20V
• Maximum input current of 1µA at 18V
• ±10mA DC input current
Коммутатор аналоговых сигналов
Кол-во в упаковке: 25, корпус: DIP16, АБ
EU RoHS | Compliant |
---|---|
ECCN (US) | EAR99 |
Part Status | Active |
HTS | 8542.39.00.01 |
Logic Family | CD4000 |
Logic Function | Decoder/Demultiplexer |
Demultiplexing Capability | 1-of-10 |
Number of Elements per Chip | 1 |
Number of Element Inputs | 4 |
Number of Element Outputs | 10 |
Polarity | Non-Inverting |
В разработке.
Характеристики, параметры
Скачать файлРезультаты поиска по позиции
-
Наименование Отгрузка, дней Наличие, шт. Цена, руб Нужное к-во, шт. CD4028BE
7-10 11 46.80 CD4028BE
4-6 10 48.75 CD4028BE
7-10 180 0.00 CD4028BE
1-1 по запросу 1000 10 472.80 CD4028BE
6-7 146 1000 39.68 CD4028BE
4-6 177 1000 32.37
