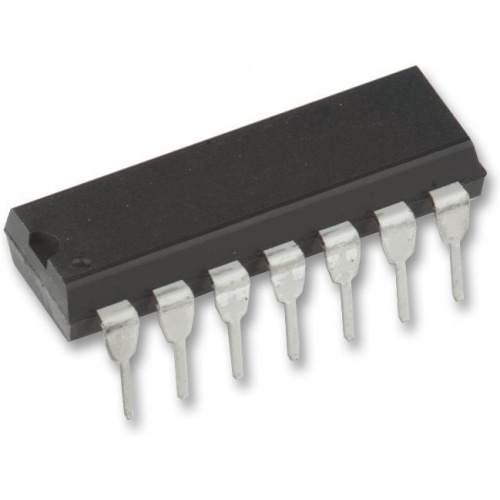

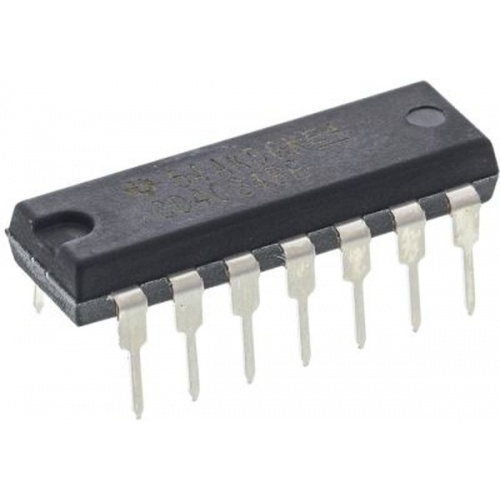

CD4024BE

The CD4024BE is a CMOS 7-stage ripple-carry binary Counter/Divider with master-slave flip-flops counter stages. The state of a counter advances one count on the negative transition of each input pulse a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered.

• Medium-speed operation
• Fully static operation
• Buffered inputs and outputs
• 100% Tested for quiescent current at 20V
• Standardized, symmetrical output characteristics
• Fully static operation
• Common reset
• Maximum input current of 1µA at 18V
• Green product
