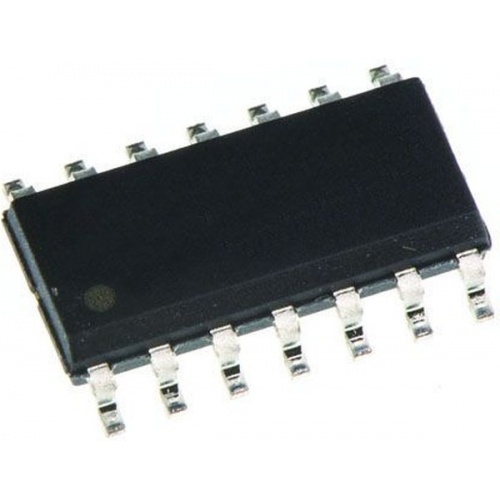

CD4011BM96

Цена 32.86 - 107.81 руб.

Описание CD4011BM96

The CD4011BM96 is a CMOS quad 2-input NAND Gate. The device provide the system designer with direct implementation of...

The CD4011BM96 is a CMOS quad 2-input NAND Gate. The device provide the system designer with direct implementation of the NAND function and supplement the existing family of CMOS gates. All inputs and outputs are buffered. The device features standardized and symmetrical output characteristics.

• 60ns Propagation delay time
• 100% Tested for quiescent current at 20V
• 2.5 at VDD = 15V Noise margin
• 5V, 10V and 15V Parametric ratings
• Meets all requirements of JEDEC tentative standard No. 13B
• Green product and no Sb/Br

Серия	4000B
Тип логичекого элемента	2и-he
Кол-во элементов	4
Напряжение питания	3…18В
Максимальный выходной ток: High/Low	-3.4/3.4мА
Логический уровень - Low	1.5…4В
Логический уровень - High	3.5…11В
Максимальное время задержки при Max V и CL	90нс
Рабочая температура	-55…+125°C
Корпус	soic-14(3.9мм)
Вес	0.25г
