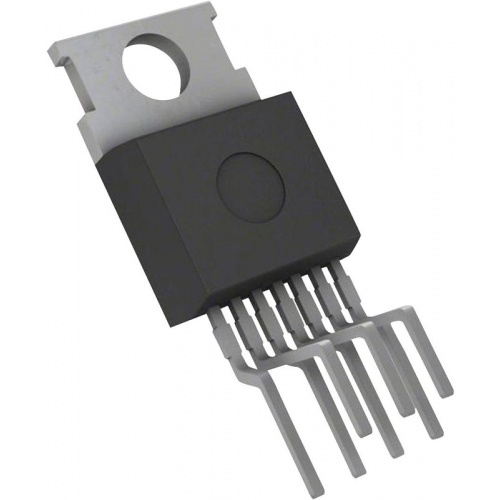

BTS500551TMBAKSA1

The BTS50055-1TMB is a N-channel high-side vertical high current power FET Switch with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in smart SIPMOS® chip on chip technology. It provides embedded protective functions and open load detection via current sense.

• Overload protection
• Current limitation
• Short-circuit protection
• Over-temperature protection
• Over voltage protection
• Clamp of negative voltage at output
• Fast de-energizing of inductive loads
• Low ohmic inverse current operation
• Loss of VBB protection
• Electrostatic discharge (ESD) protection
• High load current capability
• High inrush current capability
• High energy capability
