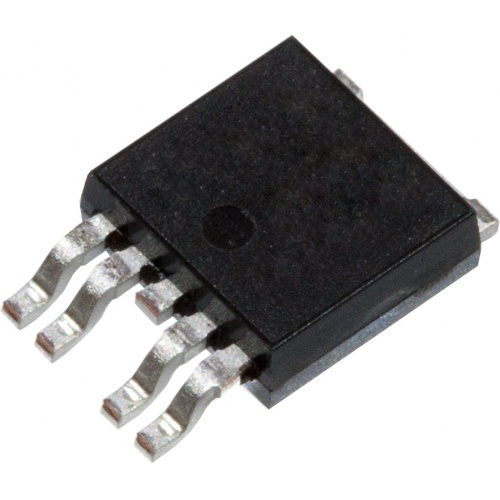

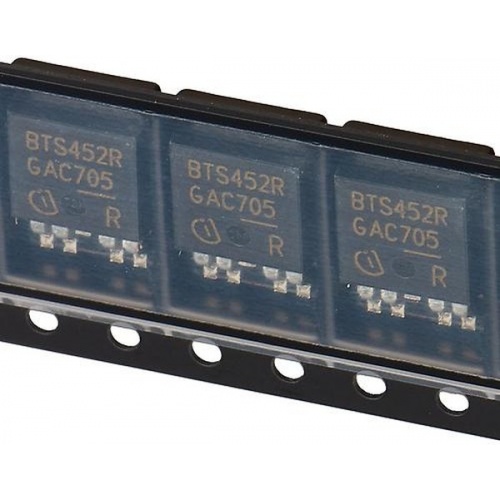

BTS452R

The BTS452R is a PROFET™ high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. It is placed between the supply and load in order to control the application.

• Overload protection
• Current limitation
• Short-circuit protection
• Thermal shutdown with restart
• Overvoltage protection
• Shutdown when under-voltage
• Fast demagnetization of inductive loads
• Reverse battery protection with external resistor
• Open drain diagnostic output for over-temperature and short circuit
• Open load detection in OFF - state with external resistor
• CMOS compatible input
• Very low standby current
• 12 or 24V capable
• Single channel
