124698
B25667C3497A375
Цена 4 200.00 руб.
Описание B25667C3497A375
B25667C Series PhaseCap The PhaseCap B25667C series from EPCOS are Power Factor Correction (PFC) metallised polypropy...

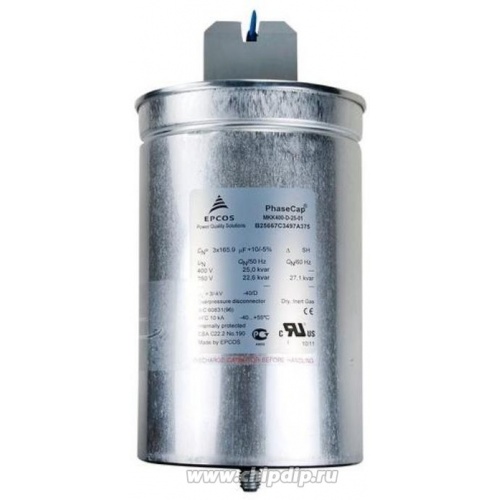

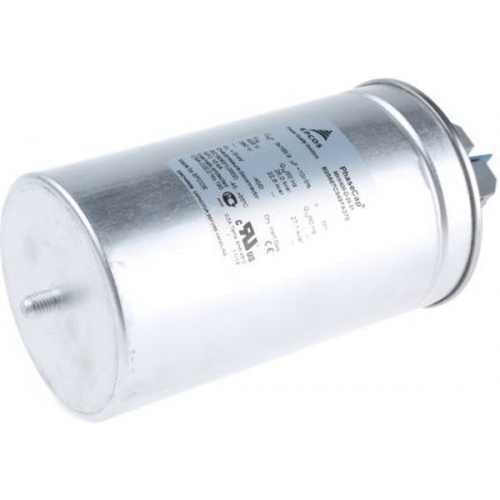

B25667C Series PhaseCap
The PhaseCap B25667C series from EPCOS are Power Factor Correction (PFC) metallised polypropylene film capacitors. Constructed from a polypropylene film dielectric, these PFC capacitors are encased in a cylindrical aluminium case with a threaded stud. EPCOS film capacitors are wave cut and have concentric winding. With optimised safety terminals and a triple safety system, this series features a ceramic discharge module. B25667C film capacitors are naturally air cooled and suitable for indoor mounting.
The PhaseCap B25667C series from EPCOS are Power Factor Correction (PFC) metallised polypropylene film capacitors. Constructed from a polypropylene film dielectric, these PFC capacitors are encased in a cylindrical aluminium case with a threaded stud. EPCOS film capacitors are wave cut and have concentric winding. With optimised safety terminals and a triple safety system, this series features a ceramic discharge module. B25667C film capacitors are naturally air cooled and suitable for indoor mounting.
Пленочный конденсатор
Кол-во в упаковке: 1, корпус: TOCAN2
| Voltage | 400V ac |
|---|---|
| Dielectric | Polypropylene Film |
| Brand | Epcos |
| Dimensions | 116 (Dia.) x 200mm |
| Capacitance | 165000 (x3)nF |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -40°C |
| Series | B25667C |
| Terminal Type | Stud Mount |
| Height | 200mm |
| Tolerance | -5 → +10% |
| Equivalent Series Resistance | 3.23mΩ |
| Вес | 2.09кг |
В разработке.
Характеристики, параметры
