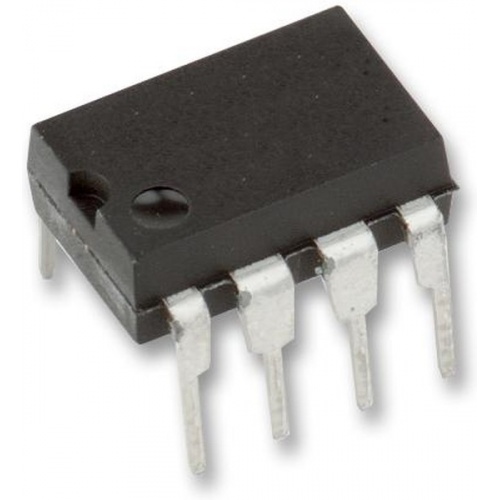

ATtiny45-20PU
Цена 229.68 - 762.45 руб.
Описание ATtiny45-20PU
The Atmel ATTINY45-20PU is a high performance and low power AVR 8-bit microcontroller with 4K bytes of in-system prog...The Atmel ATTINY45-20PU is a high performance and low power AVR 8-bit microcontroller with 4K bytes of in-system programmable flash, alongside 256 bytes of EEPROM and 256 bytes of SRAM. The device is manufactured using Atmel's high density non-volatile memory technology. The on-chip ISP flash allows the program memory to be re-programmed in-system through an SPI serial interface, by a conventional non-volatile memory programmer or by an on-chip boot code running on the AVR core.
• Universal serial interface with start condition detector
• Comes with debugWIRE on-chip debug system
• In-system programmable via SPI port
• Low power idle, ADC noise reduction and power-down modes
• Six programmable input and output lines
• External and internal interrupt sources
• Programmable brown-out detection circuit
• Internal calibrated oscillator
• On-chip analogue comparator
• 8-bit high speed timer/counter with separate prescaler and two PWM channels
Серия | avr attiny |
---|---|
Ядро | avr |
Ширина шины данных | 8-бит |
Тактовая частота | 20 мгц |
Количество входов/выходов | 6 |
Объем памяти программ | 4 кбайт(2k x 16) |
Тип памяти программ | flash |
Объем EEPROM | 256x8 |
Объем RAM | 256x8 |
Наличие АЦП/ЦАП | ацп 4x10b |
Встроенные интерфейсы | usi |
Встроенная периферия | brown-outdetect/reset, por, pwmwdt |
Напряжение питания | 2.7…5.5 в |
В разработке.
Характеристики, параметры
Скачать файлРезультаты поиска по позиции
-
Наименование Отгрузка, дней Наличие, шт. Цена, руб Нужное к-во, шт. ATTINY45-20PU
4-5 600 229.68 ATTINY45-20PU
4-7 по запросу 1000 762.45 ATTINY45-20PU
4-7 по запросу 2000 331.50 "ATTINY45-20PU"
4-7 по запросу 3000 0.00 ATTINY45-20PU
4-6 2585 3000 307.11 ATtiny45-20PU
1-2 2 501.32
