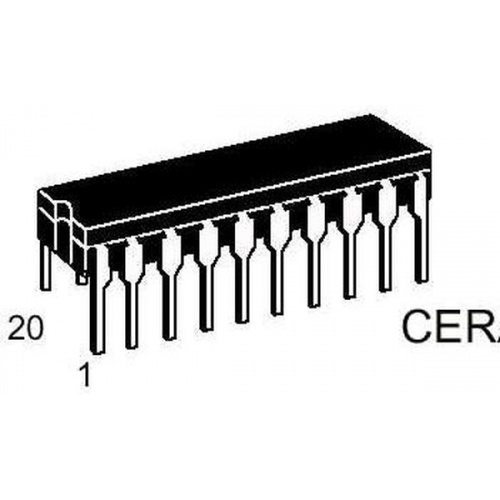

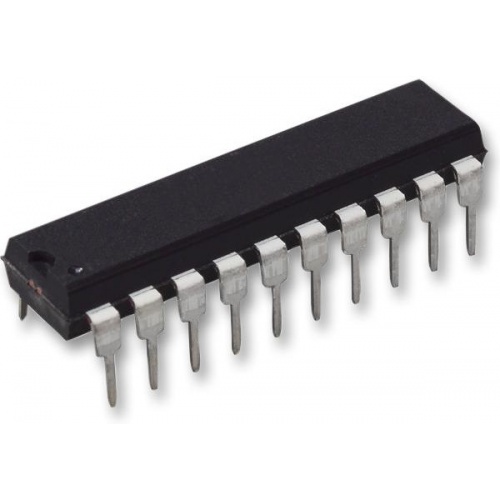

ATtiny2313A-PU

The Atmel ATTINY2313A-PU is a low power CMOS 8 bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY2313A-PU achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimise power consumption versus processing speed.

• Advanced RISC architecture
• 120 powerful instructions
• 32 x 8 general purpose working registers
• Fully static operation
• Up to 20MIPS throughput at 20MHz
• Data and non-volatile program and data memories
• 2/4K bytes of in system self programmable flash
• Endurance 10.000 Write/Erase Cycles
• Programming lock for flash and EEPROM data security
• Four PWM Channels
• On chip analog comparator
• Programmable watchdog timer with on chip oscillator
• Universal Serial Interface (USI)
• Full duplex USART
• debugWIRE on chip debugging
• In system programmable via SPI port
• External and internal interrupt sources
• Low power idle, power down, and standby modes
• Enhanced power on reset circuit
• Programmable brown-out detection circuit
