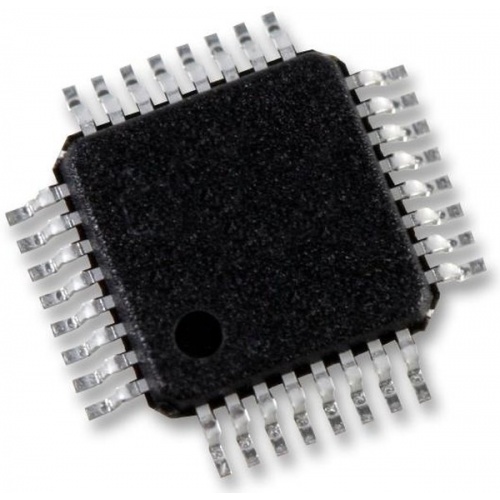

ATmega88V-10AU

The ATMEGA88V-10AU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 8kB ISP flash memory, 1kB SRAM, 512byte EEPROM, a 8-channel/10-bit A/D converter and debugWIRE for on-chip debugging. The device supports a throughput of 20MIPS at 20MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using Atmel's high density nonvolatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface.

• Advanced RISC architecture
• Power-on reset and programmable brown-out detection
• Internal calibrated RC oscillator
• External and internal interrupt sources
• Five sleep modes - Idle, ADC noise reduction, power-save, power-down and standby
• 131 Powerful instructions-most single clock cycle execution
• 32 x 8 General purpose working registers
• Fully static operation
• Up to 20MIPS throughput at 20MHz
• On-chip 2-cycle multiplier
• QTouch® library support
• Programmable watchdog timer with separate on-chip oscillator
• On-chip analog comparator
• Interrupt and wake-up on pin change
• Two 8-bit timers/counters with separate prescalers and compare modes
• One 16-bit timer/counter with separate prescaler, compare mode and capture mode
• Real-time counter with separate oscillator
• Six PWM channels
• Programmable serial USART
• Master/Slave SPI serial interface
