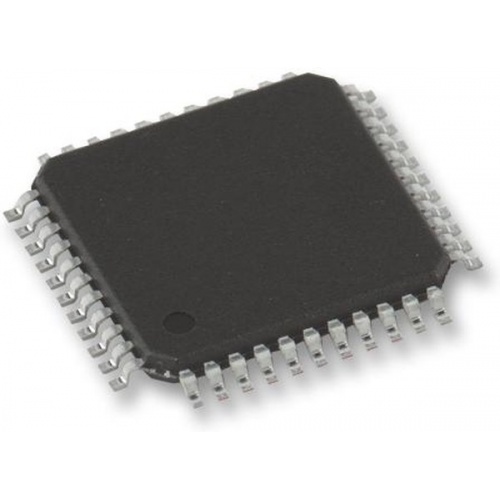

ATmega162-16AU

Цена 370.00 руб.

Описание ATmega162-16AU

The ATMEGA162-16AU is a 8-bit high-performance low-power AVR RISC-based Microcontroller combines 16kB of programmable...

The ATMEGA162-16AU is a 8-bit high-performance low-power AVR RISC-based Microcontroller combines 16kB of programmable flash memory, 1kB SRAM, 512B EEPROM and a JTAG interface for on-chip debugging. The device supports throughput of 16 MIPS at 16MHz and operates between 2.7 to 5.5V. By executing instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

• Advanced RISC architecture - On-chip 2-cycle multiplier
• High endurance, non-volatile memory segments
• JTAG (IEEE 1149.1 compliant) interface
• Two 8-bit timer/counters with separate prescalers and compare modes
• One 16-bit timer/counter with separate prescaler, compare mode and capture mode
• Power-on reset (POR) and programmable brown-out detection
• Internal calibrated RC oscillator
• External and internal interrupt sources
• Five sleep modes - Idle, power-save, power-down, standby and extended standby

Серия avr atmega
Ядро avr
Ширина шины данных 8-бит
Тактовая частота 16 мгц
Количество входов/выходов 35
Объем памяти программ 16 кбайт(8k x 16)
Тип памяти программ flash
Объем EEPROM 512x8
Объем RAM 1k x 8
Встроенные интерфейсы ebi/emi, spiuart
Встроенная периферия brown-outdetect/reset, por, pwmwdt
Напряжение питания 2.7…5.5 в
Рабочая температура -40…+85c

В разработке.

Характеристики, параметры

Скачать файл

  • Наименование Отгрузка, дней Наличие, шт. Цена, руб Нужное к-во, шт.

    atmega162-16au

    уточните 24 1000 0.00

    ATMEGA162-16AU

    4-5 303 795.66

    ATMEGA162-16AU

    4-7 420 1 215.50

    ATMEGA162-16AU

    4-7 110 934.54

    ATMEGA162-16AU

    4-6 1 789.53
