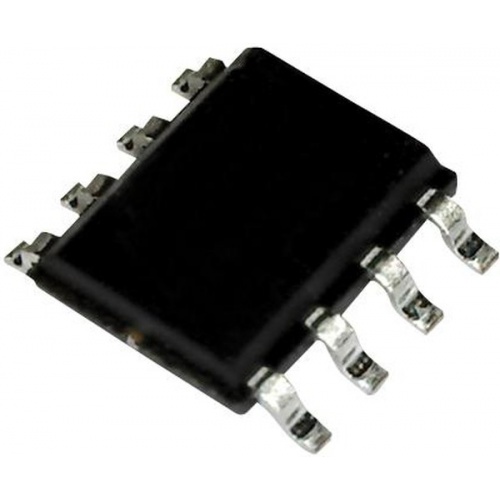

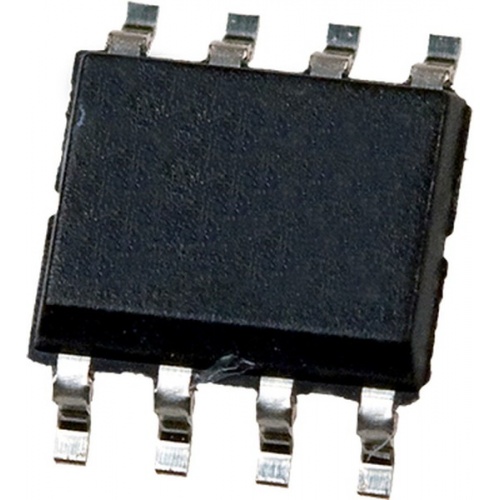

AT24C64D-SSHM-T

The AT24C64D-SSHM-T is a 65536-bit standard I²C serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as 8192 words of 8-bit each. The device cascadable feature allows up to eight devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.

• Low and standard-voltage operation
• Schmitt trigger, filtered inputs for noise suppression
• Bidirectional data transfer protocol
• Write protect pin for hardware data protection
• Self-timed write cycle (5ms maximum)
• High-reliability
• Endurance - 1000000 write cycles
• Data retention - 100 years
• Green product and no Sb/Br
