ADXL203EB

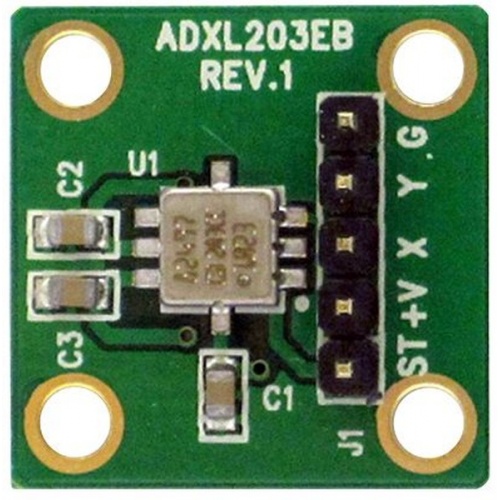

The ADXL203EB from Analog Devices is an ADXL203 breakout board. The ADXL203EB is a simple breakout board that allows quick evaluation of the performance of the ADXL203 dual axis ±1.7g accelerometer. The small size (1" x 1") of the ADXL203 makes it easy to mount the accelerometer to an existing system without the need for additional hardware and with minimal effect on performance of the system and of the accelerometer. The ADXL203EB has a 5pin 0.1inch spaced header for access to all power and signal lines that the user can attach to a prototyping board (breadboard) or wire using a standard plug. Four holes are provided for mechanical attachment of the ADXL203EB to the application. The ADXL203EB is 20mm × 20mm with mounting holes set 15mm × 15mm at the corners of the PCB.

• ADXL203 is a 2 axis, low noise, temperature stable accelerometer
• Low power 700µA at VS = 5V (typical)
• High zero g bias stability
• High sensitivity accuracy
