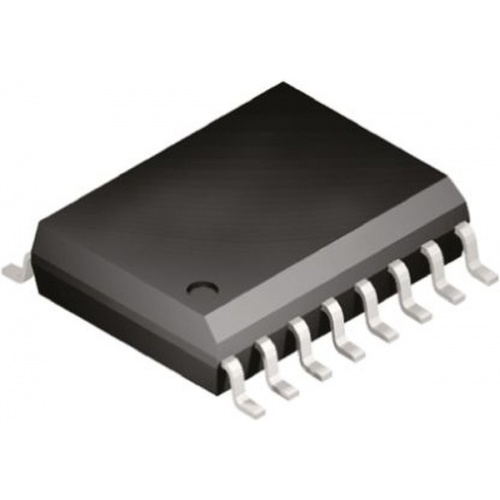

ADUM1301BRWZ

The ADUM1301 series triple-channel Digital Isolator based on the Analog Devices, Inc., iCoupler® technology. It combines high speed CMOS and monolithic transformer technology. It provides outstanding performance characteristics superior to alternatives, such as optocouplers. By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices consume one-tenth to one-sixth of the power of optocouplers at comparable signal data rates. It provides three independent isolation channels in a variety of channel configurations and data rates.

• Low power operation
• Bidirectional communication
• High data rate of dc to 90Mbps (NRZ)
• 2ns Maximum pulse width distortion
• 2ns Maximum channel-to-channel matching
• >25kV/µs High common-mode transient immunity
• Output enable function
