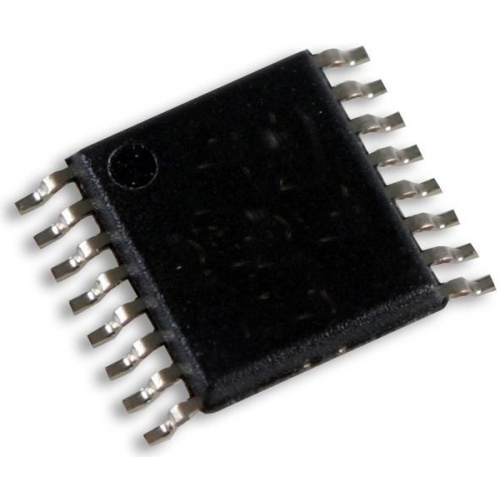

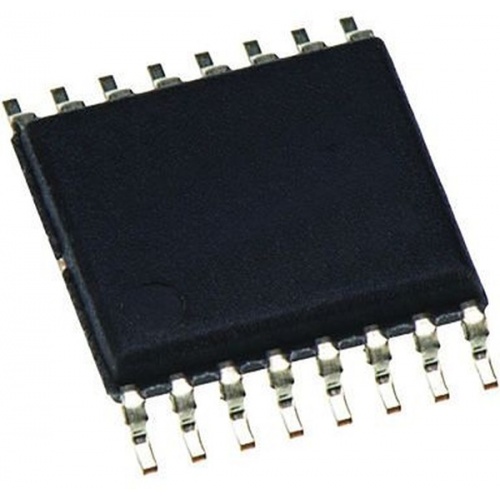

ADS1220IPW

The ADS1220IPW is a precision, 24-bit Analogue-to-digital Converter (ADC) IC, offers many integrated features to reduce system cost and component count in applications measuring small sensor signals. The device features two differential or four single-ended inputs through a flexible input multiplexer (MUX), a low-noise, programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, a low-side switch and a precision temperature sensor. The device can perform conversions at data rates up to 2000 samples-per-second (SPS) with single-cycle settling. At 20 SPS, the digital filter offers simultaneous 50 and 60Hz rejection for noisy industrial applications. The device supports measurements of pseudo- or fully-differential signals when using the PGA.

• Low Current Consumption
• 1 to 128V/V Programmable Gain
• Up to 2kSPS Programmable Data Rate
• Up to 20-bit Effective Resolution
• Simultaneous 50 and 60Hz Rejection at 20 SPS with Single-Cycle Settling Digital Filter
• Two Differential or Four Single-ended Inputs
• 10µA to 1.5mA Dual-matched Programmable Current Sources
• 5ppm/°C (Typical) Drift Internal 2.048V Reference
• Internal 2% Accurate Oscillator
• 0.5°C (Typical) Accuracy Internal Temperature Sensor
• SPI™-compatible Interface (Mode 1)
• Green Product, No Sb/Br
