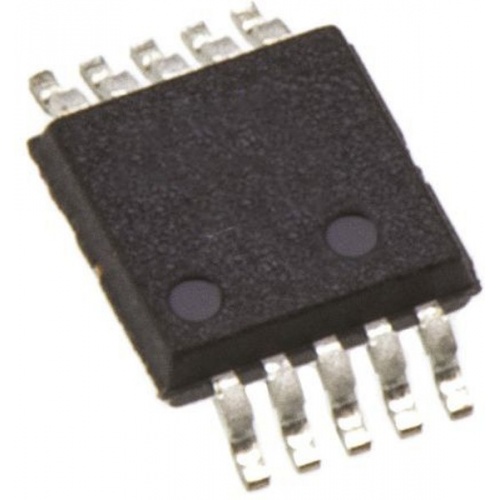

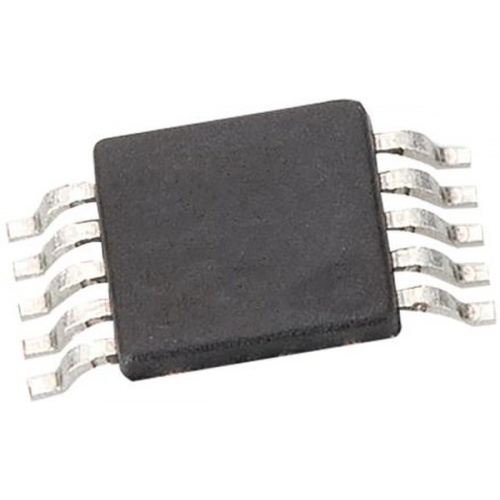

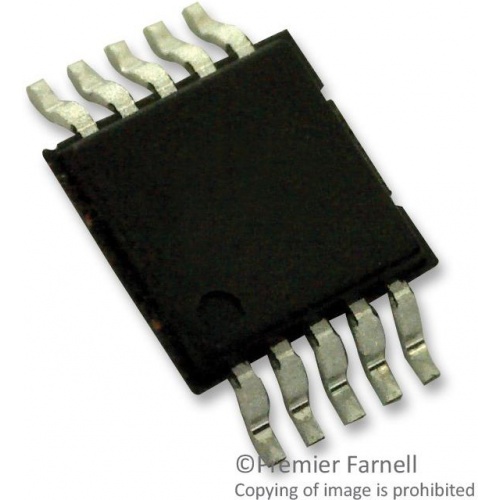

AD8351ARMZ

The AD8351ARMZ is a fully differential low distortion RF/IF Amplifier designed to drive high resolution (10-14-bit)/high speed ADCs (240MSPS) at IF frequencies within communications receivers. The AD8351 simplifies ADC driving allowing the user to adjust the gain (up to 26dB) through one external resistor and incorporates output common mode adjustment circuit to ease the drive levels into the ADC. The AD8351 is a very low distortion gain stage, along with low noise and wide gain bandwidth, making the part ideally suited to be used in digital communications IF receivers. The part has been fully specified for operation at a number of common IF frequencies 70/140/240MHz. The AD8351 product data sheet provides detailed circuits on the driving 12-/14-bit resolution ADCs and using the device for single ended to differential signal conversion. The AD8351 is fabricated on an advanced silicon bipolar process, operating on a single 3 or 5 volt supply.

• -3dB Bandwidth of 2.2GHz for AV = 12dB
• 0dB <=AV <=26dB Single resistor programmable gain
• Differential interface
• 2.7nV/√Hz at AV = 10dB Low noise input stage
• -79dBc second at 70MHz Low harmonic distortion
• -81dBc third at 70MHz Low harmonic distortion
• OIP3 of 31dBm at 70MHz
• 28mA at 5V Low power dissipation
• Adjustable output common-mode voltage
• Fast settling and overdrive recovery
• Slew rate of 13.000V/µs
• Power-down capability
