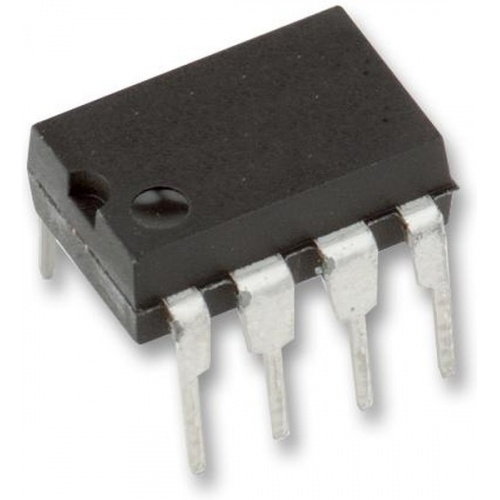

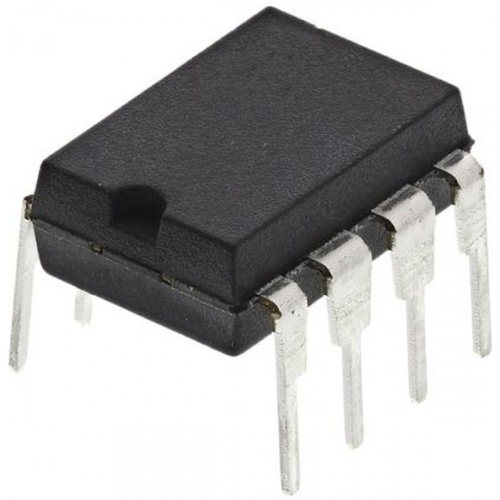

AD829JNZ

The AD829JNZ is a low noise high speed Op-amp with custom compensation that provides the user with gains of 1 to 20 while maintaining a bandwidth >50MHz. Its 0.04° differential phase and 0.02% differential gain performance at 3.58 and 4.43MHz, driving reverse-terminated 50 or 75R cables, makes it ideally suited for professional video applications. The AD829 achieves its 230V/µs uncompensated slew rate and 750MHz gain bandwidth while requiring only 5mA of current from power supplies. The external compensation pin of the AD829 gives it exceptional versatility. For example, compensation can be selected to optimize the bandwidth for a given load and power supply voltage. As a gain-of-2 line driver, the -3dB bandwidth can be increased to 95MHz at the expense of 1dB of peaking. Its output can also be clamped at its external compensation pin.

• High speed
• Excellent DC precision
• Flexible operation
• External compensation for gains 1 to 20
