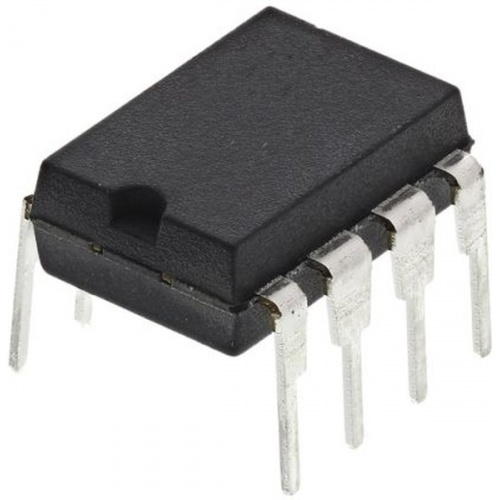

AD8041ANZ

The AD8041ANZ is a low power voltage feedback High Speed Amplifier with disable function. It has true single-supply capability with an input voltage range extending 200mV below the negative rail and within 1V of the positive rail. The output voltage swing extends to within 50mV of each rail, providing the maximum output dynamic range. Additionally, it features gain flatness of 0.1dB to 30MHz while offering differential gain and phase error of 0.03% and 0.03° on a single 5V supply. This makes the AD8041 ideal for professional video electronics such as cameras, video switchers or any high speed portable equipment. The AD8041's low distortion and fast settling make it ideal for buffering high speed A-to-D converters. The AD8041 has a high speed disable feature useful for multiplexing or for reducing power consumption (1.5mA). The disable logic interface is compatible with CMOS or open collector logic.

• Output swings rail to rail
• Input voltage range extends 200mV below ground
• No phase reversal with inputs 1V beyond supplies
• Disable/power-down capability
• High speed and fast settling on +5V
• Outstanding load drive capability
• Capacitor load drive of 45pF
