AD795JRZ

Цена 610.00 руб.

Описание AD795JRZ

The AD795JRZ is a low noise precision single FET input Operational Amplifier offers both the low voltage noise and lo...

The AD795JRZ is a low noise precision single FET input Operational Amplifier offers both the low voltage noise and low offset drift of a bipolar input op-amp and the very low bias current of a FET-input device. The 10¹⁴R common-mode impedance insures that input bias current is essentially independent of common- mode voltage and supply voltage variations. The AD795 has both excellent DC performance and a guaranteed and tested maximum input voltage noise. It features 2pA maximum input bias current and 500µV maximum offset voltage, along with low supply current of 1.5mA maximum. Furthermore, the AD795 features a guaranteed low input noise of 3.3µVp-p (0.1 to 10Hz) and a 11nV/√Hz maximum noise level at 10kHz. The AD795 has a fully specified and tested input offset voltage drift of only 10µV/°C maximum. The AD795 is useful for many high input impedance and low noise applications.

• Low power replacement for Burr-Brown OPA111, OPA121 op-amp
• Low noise
• High DC accuracy
• 500µV Maximum offset voltage
• 10µV/°C Maximum drift
• 2pA Maximum input bias current
• 1.5mA Maximum supply current

Напряжение питания ±4…18В
Температурный диапазон 0…+70C
Частота 0.01МГц
Количество каналов 1
Напряжение смещения 3мкВ

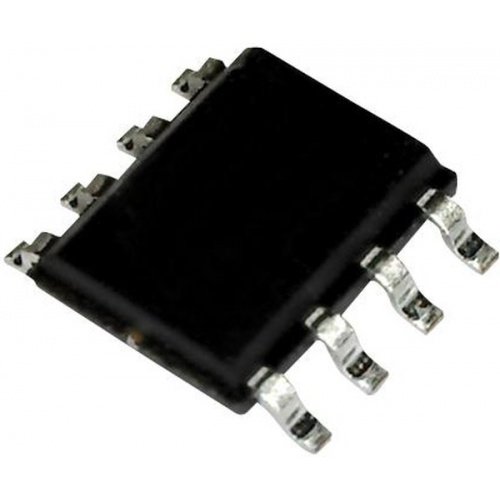

Тип корпуса so8
Вес 0.15г

В разработке.

Характеристики, параметры

Скачать файл
