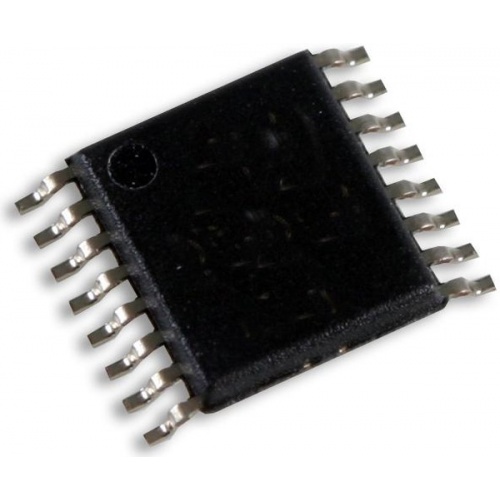

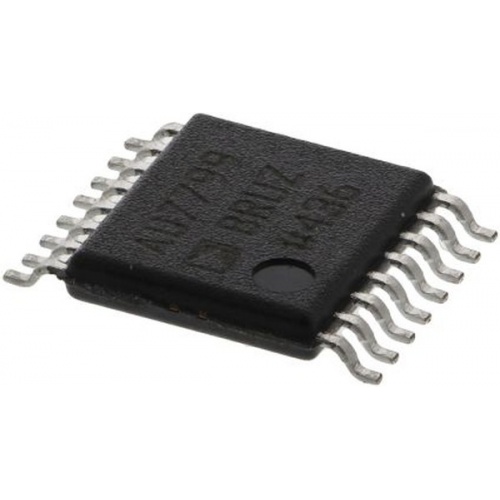

AD7799BRUZ

The AD7799BRUZ is a 3-channel 24-bit Low Power Sigma-Delta (Σ-∆) ADC with on-chip in-amp for high precision measurement applications. It contains a low noise 16-bit Σ-∆ ADC with three differential analogue inputs. The on-chip low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the RMS noise is 27nV when the update rate equals 4.17Hz. On-chip features include a low-side power switch, reference detect, programmable digital output pins, burnout currents and an internal clock oscillator. The output data rate from the part is software-programmable and can be varied from 4.17Hz to 470Hz. The part operates with a power supply from 2.7 to 5.25V. This ADC can be used for weigh scales, strain gauge transducers and smart transmitters as well as liquid/gas chromatography applications.

• 65nV RMS noise at 16.7Hz
• 380µA Typical current
• Low noise programmable gain instrumentation amp
• Internal clock oscillator
• Simultaneous 50/60Hz rejection
• Low-side power switch
• Reference detect
• Programmable digital outputs
• Independent interface power supply
