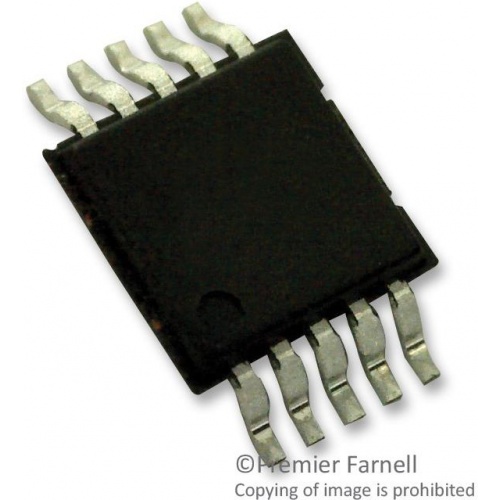

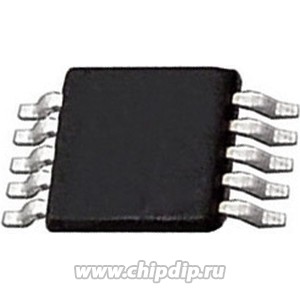

AD5322BRMZ

12BIT DAC DUAL, SMD, 5322, MSOP10; Resolution, Bits: 12bit; Time, Settling: 8чs; Sample Rate: 125KSPS; DACs, No. of: 2; Interface Type: Serial, 3 Wire; Output Type: Rail-to-Rail; Voltage, Supply Min: 2.5V; Voltage, Supply Max: 5.5V; Termination Type: SMD; Case Style: MSOP; Pins, No. of: 10; Temperature, Operating Range: -40°C to +105°C; Temp, Op. Max: 105°C; Temp, Op. Min: -40°C; A/D, D/A Features: Internal Reference, Rail-to-Rail, Serial I/P, Voltage O/P; Base Number: 5322; Bits, No. of: 12; Channels, No. of: 1; IC Generic Number: 5322; Linearity Error: 0.05%; Linearity Error, ADC/DAC +: 1LSB; Linearity Error, ADC/DAC -: 1LSB; Logic Function Number: 5322; Power, Ptot: 450mW; Time, Conversion: 8чs
Корпус SOP10, Кол-во каналов 2, Разрешение преобразователя 12

Цифро-аналоговый преобразователь
Кол-во в упаковке: 50, корпус: SOP10, АБ
