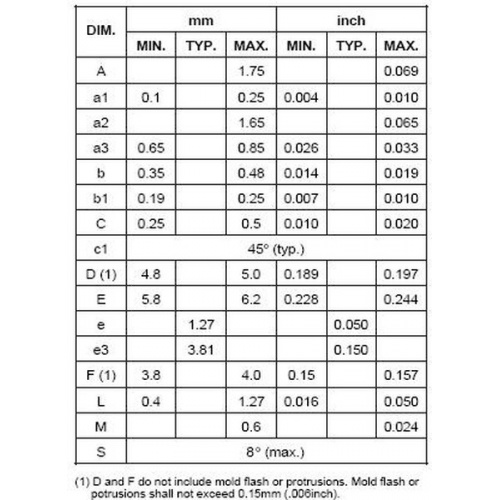

ACS713ELCTR-30A-T

The ACS713ELCTR-30A-T is a fully integrated, hall effect-based linear Current Sensor IC. It provides economical and precise solutions. The device package allows for easy implementation by the customer. The device consists of a precise, low-offset, linear Hall sensor circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. Device accuracy is optimized through the close proximity of the magnetic signal to the Hall transducer. A precise, proportional voltage is provided by the low-offset, chopper-stabilized Becomes Hall IC, which is programmed for accuracy after packaging. The output of the device has a positive slope (>VIOUT(Q)) when an increasing current flows through the primary copper conduction path (from pins 1 and 2, to pins 3 and 4), which is the path used for current sensing.

• Low-noise Analogue Signal Path
• Device Bandwidth is Set Via New Filter Pin
• 5µs Output Rise Time in Response to Step Input Current
• 1.5% at TA = 25°C Total Output Error
• 1.2mR Internal Conductor Resistance
• 2.1kVrms Minimum Isolation Voltage from Pins 1-4 to Pins 5-8
• 133mV/A Output Sensitivity
• Output Voltage Proportional to DC Currents
• Factory-trimmed for Accuracy
• Extremely Stable Output Offset Voltage
• Nearly Zero Magnetic Hysteresis
• Ratiometric Output from Supply Voltage
