91236-0001

Molex ChipSIM Connectors and Cardholders - 91228 and 91236 Series

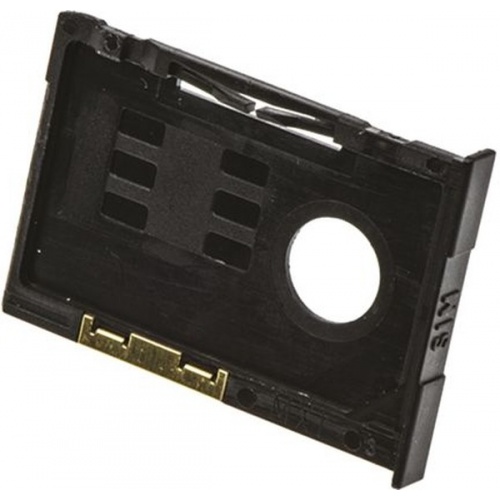

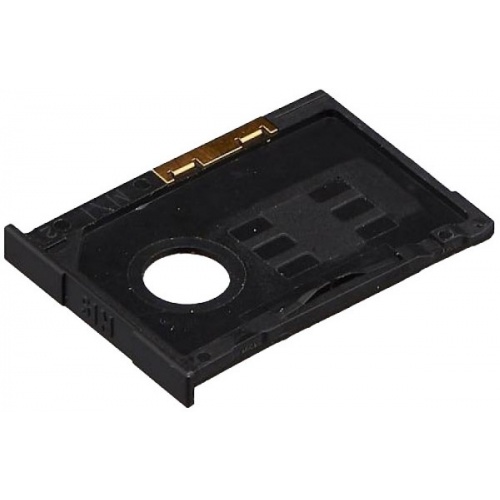

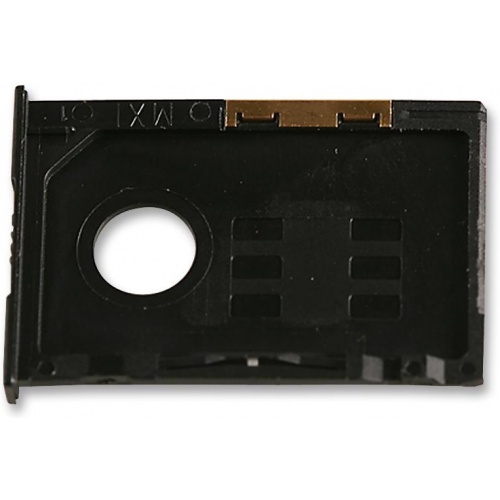

ChipSIM connectors (series 91228) and card holders (series 91236) designed for use with removable SIM cards in GSM (Global System for Mobile) communications-based systems. The ChipSim connectors feature a push button ejection mechanism for easy insertion or removal of the SIM card from the card holder. The terminals have a lead-in design which prevents stubbing during card insertion. A gold plated interface provides high durability allowing up to 5000 cycles. A back stop locates the card holder in the connector. These ChipSIM connectors are available with PCB alignment pegs and a range of button colours.<BR/>The card holders feature an active latch which prevents the SIM card from backing out from the connector due to vibration. A button must be pressed to release the latch. The card holders also have polarization features for correct SIM card orientation. A side action spring holds the SIM card in place.<BR/>Both the connector and card holder feature a card detection switch that alerts the system that the card is being inserted or removed. The detection switch also protects the card data.<BR/><a href="/productpage/productpage?stockcode=487-9349"><span class="inlineLink">487-9349</span></a> ChipSIM connector has a yellow button<BR/><a href="/productpage/productpage?stockcode=670-2298"><span class="inlineLink">670-2298</span></a> ChipSIM connector has a black button and PCB guide pegs<BR/><a href="/productpage/productpage?stockcode=670-2308"><span class="inlineLink">670-2308</span></a> ChipSIM connector has a blue button and PCB guide pegs<BR/><a href="/productpage/productpage?stockcode=487-9355"><span class="inlineLink">487-9355</span></a> ChipSIM card holder has a straight fascia<BR/><a href="/productpage/productpage?stockcode=670-1210"><span class="inlineLink">670-1210</span></a> ChipSIM card holder has an angled fascia
