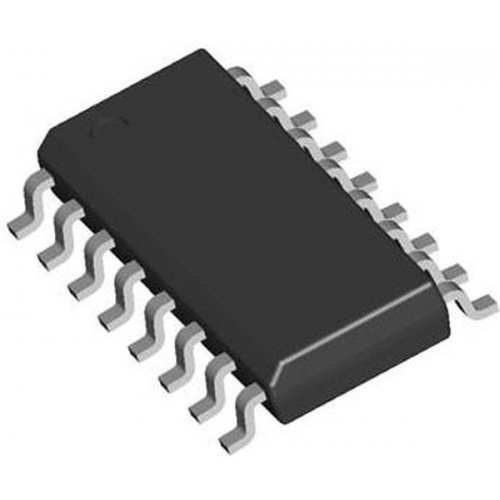

74HC139D

The 74HC139D is a 2-to-4 dual Decoder/Demultiplexer decodes two binary weighted address inputs (nA0, nA1) to four mutually exclusive outputs (nY0 to nY3). Each decoder features an enable input (nE). When nE is high all outputs are forced high. The enable input can be used as the data input for a 1-to-4 demultiplexer application. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

• Demultiplexing capability
• Multifunction capability
• Suitable for memory decoding, data routing or code conversion
• Complies with JEDEC standard No. 7A
• Active low mutually exclusive outputs
• CMOS Input levels
