502570-0893

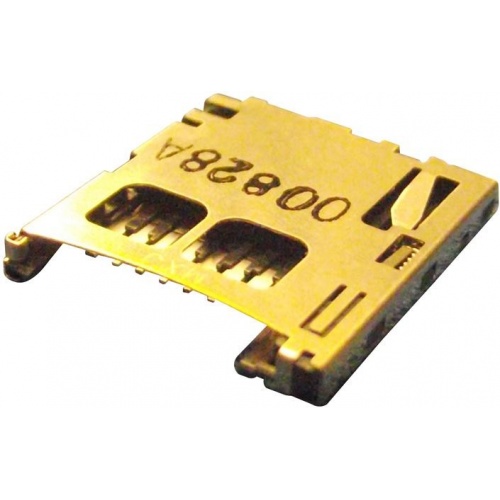

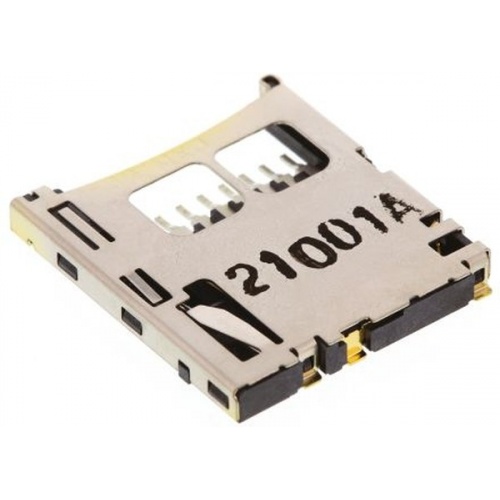

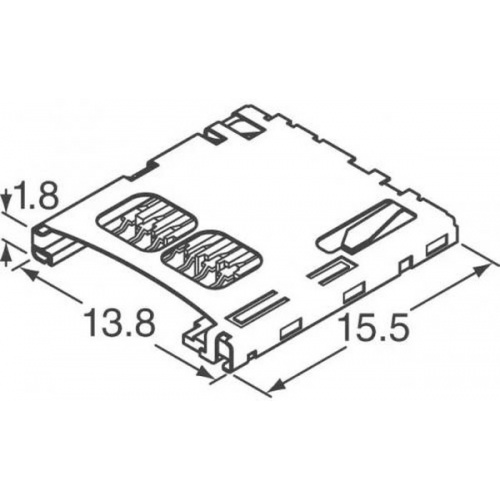

5025700893 - microSD Memory Card Connector

Description: 1.10mm Pitch microSD Memory Card Connector, Normal Mount Surface Mount, Push-Push Type

Physical

Card Detection Switch - Open

Card Entry Location - Front

Circuits (Loaded) - 8

Durability (mating cycles max) - 10000

Ejector Button Side - N/A

Material - Contact - Copper Alloy

Material - Plating Mating - Gold over Nickel

Material - Shell - Stainless Steel

Packaging Type Embossed Tape on Reel

Pitch - Mating Interface 1.10mm

Temperature Range - Operating -25°C to +85°C

Termination Interface: Style Surface Mount

Electrical

Current - Maximum per Contact 0.5A

Shielded Yes

Voltage - Maximum 10V AC (RMS)/DC

Тип карт microSD

Держатель карт памяти
Кол-во в упаковке: 1300
