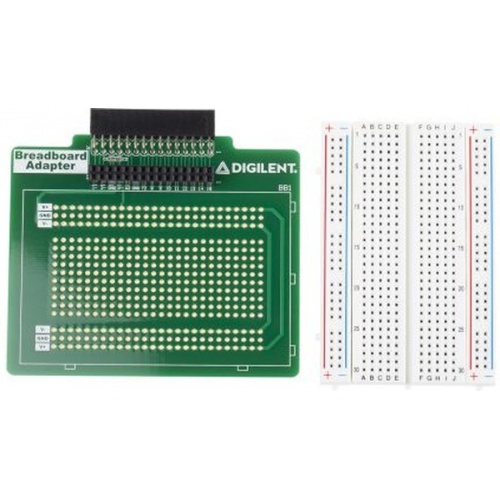

Breadboard adapter for Analog Discovery. It is intended to be used with the Analog Discovery tool to provide a prototyping surface with a secure connection. It provides a female header to pass through all connections from the Analog Discovery 2 as well as a prototyping surface. The PCB provides two power rails directly routed from the V+ and V- pins on the Analog Discovery. Components and wires can be soldered to the prototyping surface and power rails. Alternatively the half-sized breadboard can be affixed (permanently) to the adapter to provide connections (one half-sized solderless breadboard is included).

• Protoboard area consists of twenty-six rows of 10 plated through-holes
• Two 26 hole V+, V- and GND rails routed from the 30-pin connector
• 30-pin female headers pass through all signals from the Analog Discovery
• Provides an alternative to the flywires for Analog Discovery
• Direct connection with the Analog Discovery tools
• Additional pass through Analog Discovery header for easy connection
• Connected power rails
• Solderless breadboard for an alternative setup
