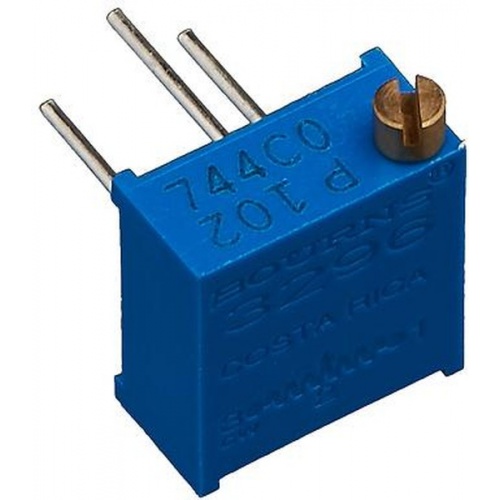

3296P-1-102LF

The Bourns Trimpot 3296 series are cermet, through hole trimming potentiometers. These potentiometers are multi-turn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.

• 3/8inch square potentiometer
• Side or top adjustment with lead screw
• Sealing is IP65 rated
• 25 turns and rotational life of 200 cycles
• Resistance value ranges from 10 ohm to 2Mohm
• ±10% tolerance
• Temperature coefficient is ±100ppm/°C
• Operating temperature ranges from -55°C to +125°C
• Power rating is 0.5W
• 5 terminal styles, chevron seal design
